M 11-0

M 11-0; Elprom KB Kliment (ID = 1283056) Radio
M 11-0; Elprom KB Kliment (ID = 390533) Radio M 11-0; Elprom KB Kliment (ID = 390534) Radio
M 11-0; Elprom KB Kliment (ID = 390535) Radio
Use red slider bar for more.
M 11-0; Elprom KB Kliment (ID = 390533) Radio

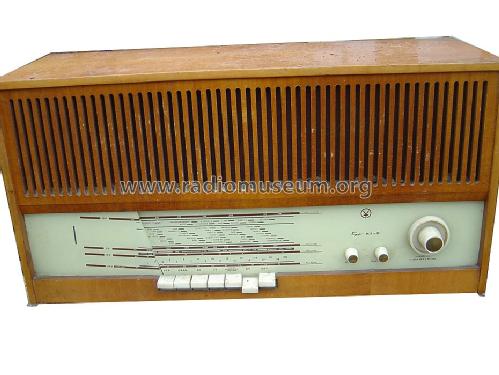

Elprom KB Kliment: M 11-0 [Radio] ID = 390533 932x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model M 11-0, Elprom KB (Kliment Voroshilov Works, Slabotokov zavod); Sofia:
Leider ist die Skalenscheibe zerbrochen. Das Foto entstand in einem Recyclinghof

Country:  Bulgaria
Manufacturer / Brand:  Elprom KB (Kliment Voroshilov Works, Slabotokov zavod); Sofia
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: M 11-0 - Elprom KB Kliment Voroshilov
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 630 x 320 x 250 mm / 24.8 x 12.6 x 9.8 inch
Notes OIRT-FM, Czech inscriptions.
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Elprom KB (Kliment Voroshilov Works, Slabotokov zavod); Sofia
Here you find 65 models, 60 with images and 50 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
