Air-King 986

Air-King 986; Eltra; Frederiksberg (ID = 1599086) Radio

Air-King 986; Eltra; Frederiksberg (ID = 1599087) Radio
Air-King 986; Eltra; Frederiksberg (ID = 1011446) Radio Air-King 986; Eltra; Frederiksberg (ID = 307913) Radio
Air-King 986; Eltra; Frederiksberg (ID = 307914) Radio Air-King 986; Eltra; Frederiksberg (ID = 307915) Radio
Air-King 986; Eltra; Frederiksberg (ID = 307916) Radio Air-King 986; Eltra; Frederiksberg (ID = 307918) Radio
Air-King 986; Eltra; Frederiksberg (ID = 1011447) Radio Air-King 986; Eltra; Frederiksberg (ID = 1327742) Radio
Use red slider bar for more.

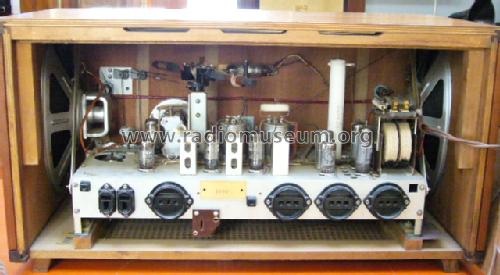

Air-King 986; Eltra; Frederiksberg (ID = 1011446) Radio
Eltra; Frederiksberg: Air-King 986 [Radio] ID = 1011446 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model Air-King 986, Eltra; Frederiksberg

Country:  Denmark
Manufacturer / Brand:  Eltra; Frederiksberg
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: PCC85 ECH81 EBF89 EBF89 PM84 PCC85 ECC83 ECC83 PL84 PL84
Semiconductors (the count is only for transistors) OA79 OA79 Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Air-King 986 - Eltra; Frederiksberg
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes NF-Stereo.
Source of data -- Collector info (Sammler)

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.



All listed radios etc. from Eltra; Frederiksberg
Here you find 36 models, 33 with images and 19 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
