Admiral ; EMPO, Severoceska (ID = 2151944) Radio

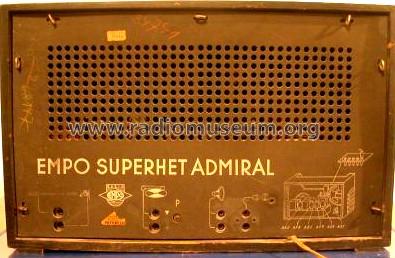

EMPO, Severoceska: Admiral [Radio] ID = 2151944 1100x868
Select picture or schematic to display from thumbnails on the right and click for download.
For model Admiral, EMPO, Severoceska Tovarna El., Sp. S.R.O (ESTE).; Praha-Cakovice

Country:  Czechoslovakia
Manufacturer / Brand:  EMPO, Severoceska Tovarna El., Sp. S.R.O (ESTE).; Praha-Cakovice
alternative name

Severoceska Tovarna Elektromeru
Brand
ESTE
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AK2 AF3 AB2 AF7 AD1 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 481 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Admiral - EMPO, Severoceska Tovarna El.,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 545 x 345 x 245 mm / 21.5 x 13.6 x 9.6 inch
Notes variable Bandbreite; Zeiger-Abstimmhilfe
Price in first year of sale 1,990.00 Kc
Collectors' prices
External source of data Erb
Source of data Ceskoslovenske prijimace 1933-1945, Baudys 1947


All listed radios etc. from EMPO, Severoceska Tovarna El., Sp. S.R.O (ESTE).; Praha-Cakovice
Here you find 32 models, 28 with images and 26 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
