Musikschrank 428
Emud, Ernst Mästling; Ulm
- Country
- Germany
- Manufacturer / Brand
- Emud, Ernst Mästling; Ulm
- Year
- 1956/1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 20685
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 180; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17.8 cm = 7 inch
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Musikschrank 428 - Emud, Ernst Mästling; Ulm
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 600 x 810 x 390 mm / 23.6 x 31.9 x 15.4 inch
- Notes

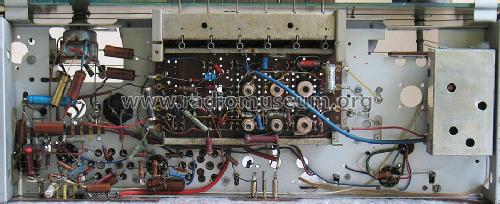

- Phono-Chassis = Philips AG2004. Radio-Chassis vom EMUD REKORD 265.

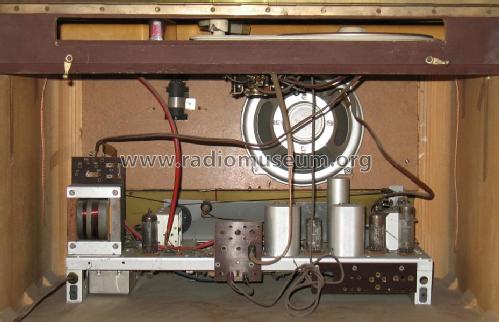

Laut Katalog soll ein Ovallautsprecher eingebaut sein (wie im Rekord 265). Das wurde offensichtlich geändert, wobei auch die Abstimmanzeige einen anderen Platz fand.
- Net weight (2.2 lb = 1 kg)
- 23 kg / 50 lb 10.6 oz (50.661 lb)
- Price in first year of sale
- 428.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1956/57
