Phono Rekord 348

Phono Rekord 348; Emud, Ernst Mästling (ID = 1229544) Radio Phono Rekord 348; Emud, Ernst Mästling (ID = 1229546) Radio

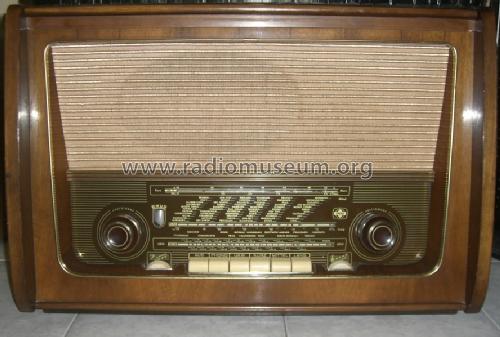

Phono Rekord 348; Emud, Ernst Mästling (ID = 1229547) Radio Phono Rekord 348; Emud, Ernst Mästling (ID = 1630142) Radio
Phono Rekord 348; Emud, Ernst Mästling (ID = 1630143) Radio Phono Rekord 348; Emud, Ernst Mästling (ID = 1656550) Radio
Phono Rekord 348; Emud, Ernst Mästling (ID = 1656551) Radio Phono Rekord 348; Emud, Ernst Mästling (ID = 1656552) Radio
Phono Rekord 348; Emud, Ernst Mästling (ID = 1656555) Radio
Use red slider bar for more.
Phono Rekord 348; Emud, Ernst Mästling (ID = 1229544) Radio
Emud, Ernst Mästling: Phono Rekord 348 [Radio] ID = 1229544 933x619
Select picture or schematic to display from thumbnails on the right and click for download.
For model Phono Rekord 348, Emud, Ernst Mästling; Ulm

Country:  Germany
Manufacturer / Brand:  Emud, Ernst Mästling; Ulm
Year: 1954 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz; 2 AF stage(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Phono Rekord 348 - Emud, Ernst Mästling; Ulm
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 560 x 370 x 380 mm / 22 x 14.6 x 15 inch
Notes Einbau-Plattenspieler Philips. Der Lautsprecher ist oval ca. 25x13.
Source of data - - Data from my own collection

Model page created by Helmut Frings. See "Data change" for further contributors.
