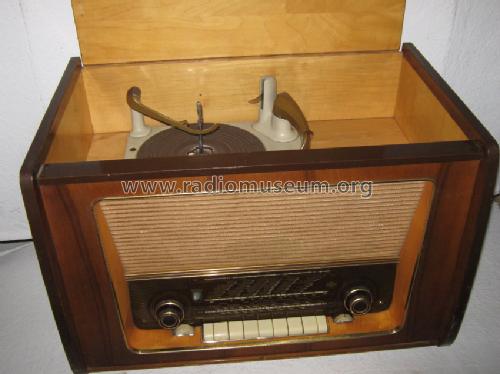

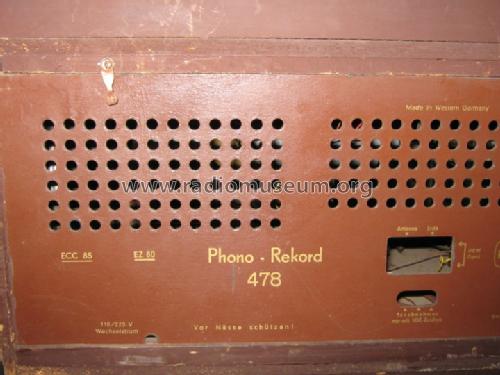

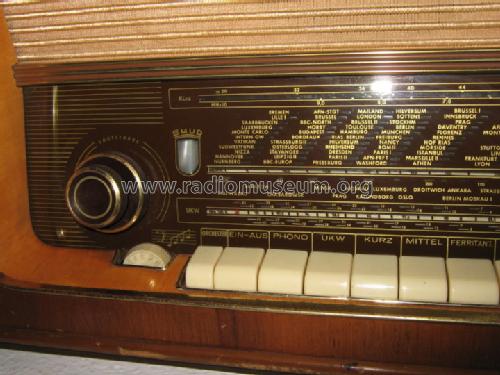

Phono-Rekord 478

Emud, Ernst Mästling; Ulm

  • Year
  • 1957–1959
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 21117

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 468/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 150; 180; 220 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 6 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Phono-Rekord 478 - Emud, Ernst Mästling; Ulm
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 630 x 410 x 410 mm / 24.8 x 16.1 x 16.1 inch
  • Net weight (2.2 lb = 1 kg)
  • 20 kg / 44 lb 0.8 oz (44.053 lb)
  • Price in first year of sale
  • 478.00 DM
  • External source of data
  • Erb
