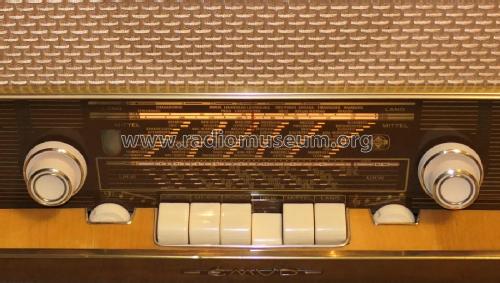

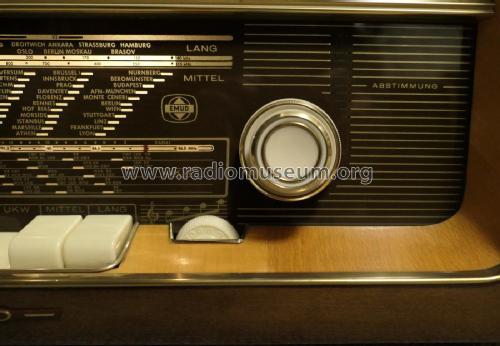

Phono-Rekord 59

Phono-Rekord 59; Emud, Ernst Mästling (ID = 327820) Radio
Phono-Rekord 59; Emud, Ernst Mästling (ID = 2017069) Radio Phono-Rekord 59; Emud, Ernst Mästling (ID = 2017068) Radio
Phono-Rekord 59; Emud, Ernst Mästling (ID = 2017070) Radio Phono-Rekord 59; Emud, Ernst Mästling (ID = 2017071) Radio
Phono-Rekord 59; Emud, Ernst Mästling (ID = 2124660) Radio Phono-Rekord 59; Emud, Ernst Mästling (ID = 2124661) Radio
Phono-Rekord 59; Emud, Ernst Mästling (ID = 2124662) Radio Phono-Rekord 59; Emud, Ernst Mästling (ID = 2124663) Radio
Phono-Rekord 59; Emud, Ernst Mästling (ID = 2124664) Radio Phono-Rekord 59; Emud, Ernst Mästling (ID = 2124666) Radio
Use red slider bar for more.
Phono-Rekord 59; Emud, Ernst Mästling (ID = 2017069) Radio
Emud, Ernst Mästling: Phono-Rekord 59 [Radio] ID = 2017069 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Phono-Rekord 59, Emud, Ernst Mästling; Ulm

Country:  Germany
Manufacturer / Brand:  Emud, Ernst Mästling; Ulm
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.

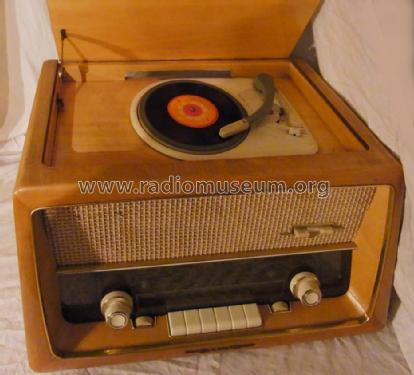

Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 130; 150; 180; 220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Phono-Rekord 59 - Emud, Ernst Mästling; Ulm
Material Wooden case
Dimensions (WHD) 600 x 360 x 340 mm / 23.6 x 14.2 x 13.4 inch
Notes

Im HdB d.Rdf-& Ferns-GrH 1958/59 ist fälschlich die EM84 als Anzeigeröhre angeführt.

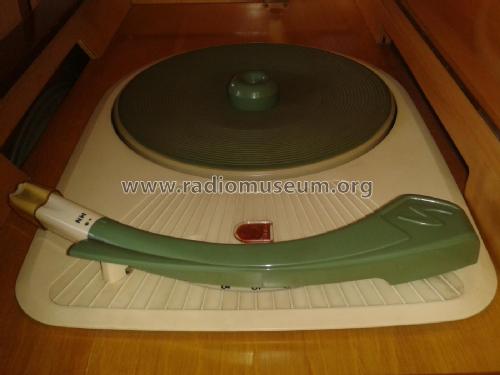

Phono-Chassis: Philips NG1270 (SC30)

Net weight (2.2 lb = 1 kg) 16.5 kg / 36 lb 5.5 oz (36.344 lb)
Price in first year of sale 378.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1958/59
Literature/Schematics (1) -- Original-techn. papers.
