Rekord 265 3D-W
Emud, Ernst Mästling; Ulm
- Country
- Germany
- Manufacturer / Brand
- Emud, Ernst Mästling; Ulm
- Year
- 1956/1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 20572
ebay
ebay
ebay
Aus dem Großhandelskatalog 1956

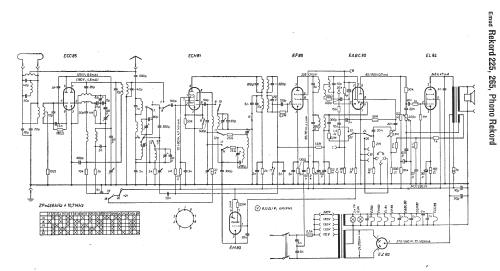

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 180; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Rekord 265 3D-W - Emud, Ernst Mästling; Ulm
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 590 x 385 x 260 mm / 23.2 x 15.2 x 10.2 inch
- Notes
- 3D-Effekt durch Tonkammer-System.
- Net weight (2.2 lb = 1 kg)
- 10.2 kg / 22 lb 7.5 oz (22.467 lb)
- Price in first year of sale
- 265.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1956/57
- Literature/Schematics (1)
- -- Original-techn. papers.
