• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Ensign Radio, The Electric Lamphouse Ltd.; Wellington

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 345629

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6K7 6L7 6C5 6K7 6G5 6B8 6F6 5Z4

• Main principle
• Superhet with RF-stage; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Ensign G1 [Push Button Tuning] - Ensign Radio, The Electric

• Shape
• Console with any shape - in general

• Notes

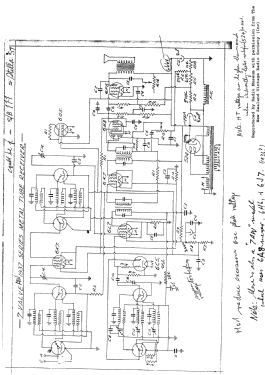

• 8-Valve (including magic eye) superhet with RF stage all wave console receiver with push button tuning and 10" Operadio dynamic speaker (schematic shown is this model without push button tuning).

  Manufactured by Collier & Beale Ltd for Electric Lamphouse Ltd.

• Price in first year of sale
• 45.50 NZ £

• Mentioned in
• -- Original prospect or advert (Lamphouse Annual 1938 Page 43 (World Radio History))

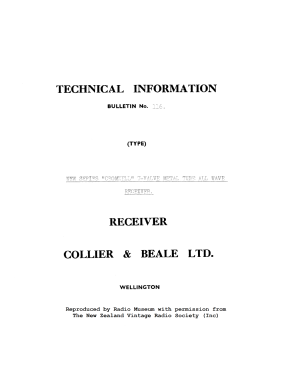

• Literature/Schematics (1)
• More Golden Age of Radio (Page 104)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
