• Country
• Finland

• Manufacturer / Brand
• Helkama-Radio Oy; Hanko

• Year
• 1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 151878

• • Brand: Ergo

• Number of Tubes
• 11

• Valves / Tubes
• ECC85 EF89 ECH81 EABC80 EM80 EC92 EL95 EL95 ECC85 EL95 EL95

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details

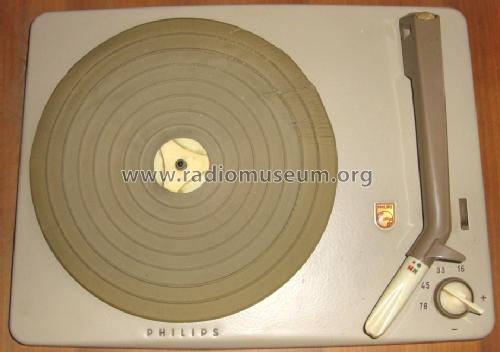

• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220; 250 Volt

• Loudspeaker
• 3 Loudspeakers / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: HR-STEREO 5001W - Helkama-Radio Oy; Hanko

• Shape
• Console, Highboy (legs > 50 %).

• Dimensions (WHD)
• 832 x 370 x 360 mm / 32.8 x 14.6 x 14.2 inch

• Net weight (2.2 lb = 1 kg)
• 28 kg / 61 lb 10.8 oz (61.674 lb)

• Price in first year of sale
• 59,800.00 FIM

• Author
• Model page created by Jouko Laukkanen. See "Data change" for further contributors.

• Other Models

• Here you find 53 models, 45 with images and 10 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
