• Year
  • 1952
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 8458

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 150; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

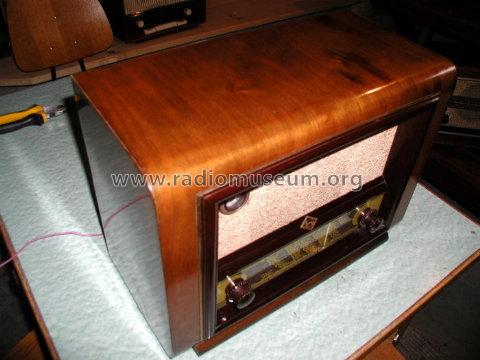

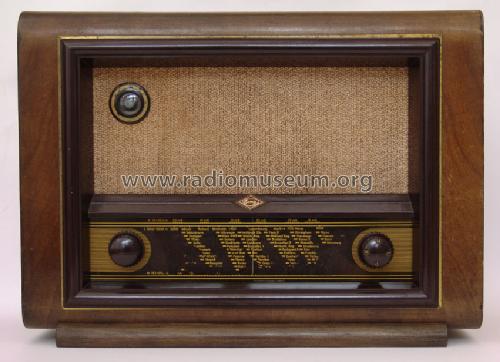

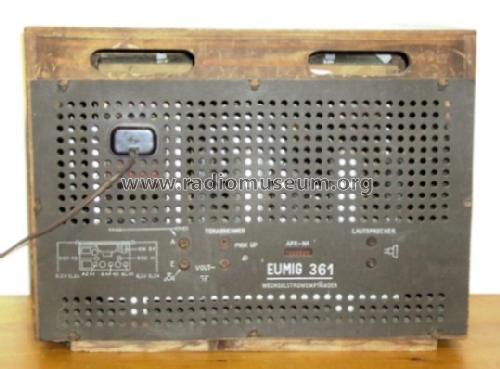

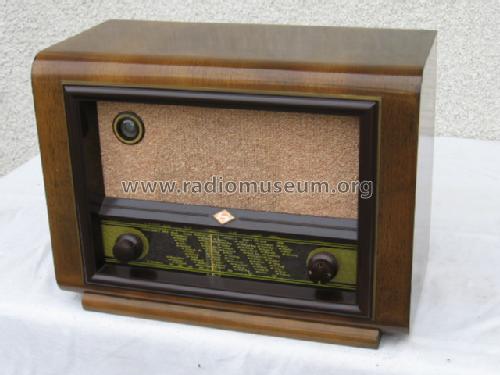

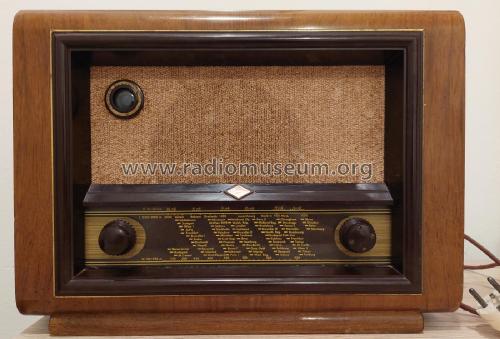

  • Model: 361 - Eumig, Elektrizitäts und
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 400 x 300 x 210 mm / 15.7 x 11.8 x 8.3 inch
  • Net weight (2.2 lb = 1 kg)
  • 8.6 kg / 18 lb 15.1 oz (18.943 lb)
  • Price in first year of sale
  • 1'240.00 öS
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference
  • Lange-Nowisch
