• Country
• Austria

• Manufacturer / Brand
• Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71996

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCC85 UCH81 UF89 UABC80 UM80 UL41

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• AC/DC-set / 220 Volt

• Material
• Wooden case

• from Radiomuseum.org

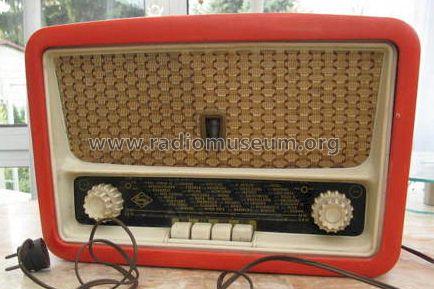

• Model: Eumigo 380U - Eumig, Elektrizitäts und

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 420 x 280 x 185 mm / 16.5 x 11 x 7.3 inch

• Notes
• Anschluß für 2.Lautsprecher 5Ohm, PU Taste

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Bernhard Sacherer. See "Data change" for further contributors.
