Volksempfänger VE301 Dyn GW

• Country
• Austria

• Manufacturer / Brand
• Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien

• Year
• 1938–1945

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75355

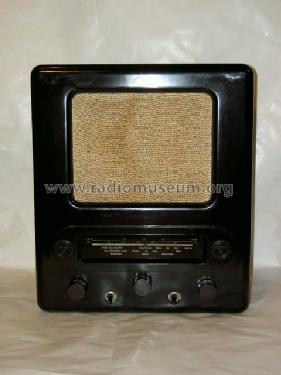

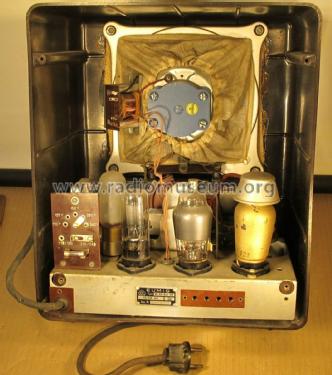

• Picture

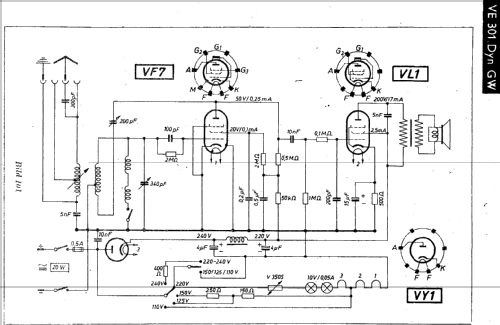

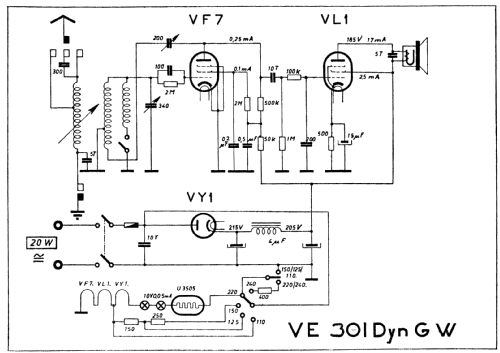

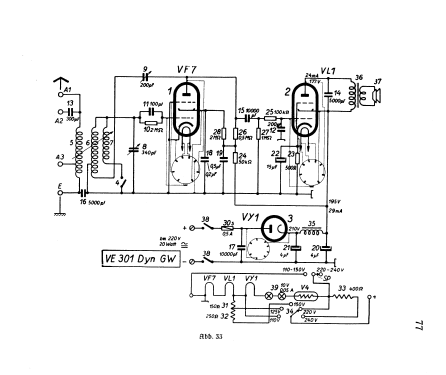

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• VF7 VL1 VY1 U3505

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Volksempfänger VE301 Dyn GW - Eumig, Elektrizitäts und

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 273 x 320 x 190 mm / 10.7 x 12.6 x 7.5 inch

• Notes
• Siehe auch Deutschland. Normalerweise nur unter Gemeinschaftserzeugnisse geführt.

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
