All-dry Transportable Receiver Model T TB2A

All-dry Transportable Receiver Model T; Ever Ready Co. GB (ID = 1020233) Radio

All-dry Transportable Receiver Model T; Ever Ready Co. GB (ID = 1020234) Radio
All-dry Transportable Receiver Model T; Ever Ready Co. GB (ID = 1322587) Radio All-dry Transportable Receiver Model T; Ever Ready Co. GB (ID = 1322588) Radio
All-dry Transportable Receiver Model T; Ever Ready Co. GB (ID = 1322589) Radio All-dry Transportable Receiver Model T; Ever Ready Co. GB (ID = 1322591) Radio
All-dry Transportable Receiver Model T; Ever Ready Co. GB (ID = 1461679) Radio
Use red slider bar for more.
All-dry Transportable Receiver Model T; Ever Ready Co. GB (ID = 1322587) Radio
Ever Ready Co. GB: All-dry Transportable Receiver Model T [Radio] ID = 1322587 933x579
Select picture or schematic to display from thumbnails on the right and click for download.
For model All-dry Transportable Receiver Model T TB2A, Ever Ready Co. (GB) Ltd.; London:

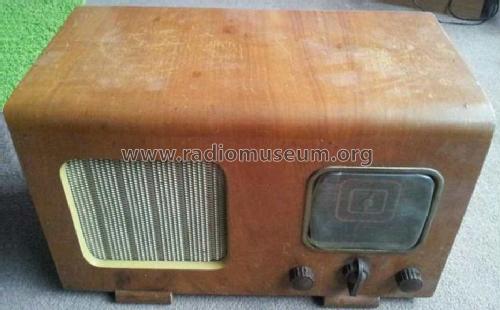

Edited from eBay 121005089012 ambushgrey No scale lamps, so possibly late TA2A, or a TB2A (not TC2A as it has different knobs)

Country:  Great Britain (UK)
Manufacturer / Brand:  Ever Ready Co. (GB) Ltd.; London
Year: 1950/1951 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK91 DF91 DAF91 DL94
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 1.5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: All-dry Transportable Receiver Model T [TB2A] - Ever Ready Co. GB Ltd.; London
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 459 x 284 x 270 mm / 18.1 x 11.2 x 10.6 inch
Notes

Battery table model. Basically the similar chassis metal work as Model K and later used on Sky Queen, Sky Prince and Sky King.

Up to Serial No.544750 there are many variations, From Serial No. 544750 the  DK92 DF91 DAF91 DL94 are fitted.

Warning

Every Ready's official service manual is for a single Model T covering all versions with a 2nd supplement schematic.

"From Serial No. 544750, receivers incorporate all the various modifications and conform exactly to the diagrams on this sheet. For earlier receivers however, reference should be made to both the original and the new diagrams when a combination of the two may be found to apply."

TB2A, TB2A and TC2A:  This only differentiates the three incompatible versions of tube/valve socket wiring and these codes are NOT anywhere on the Model (not even Chassis). These are only "in house" or factory codes. There is no assurance that there is only three versions.

Specifications (from Ever Ready Manual):

  • MW/BC 1546 to 545 kHz
  • LW 325 to 150 kHz
  • Dial Lamps: 2 x 1.25V 250mA 12mm diameter glass (Early TA2A only).
  • B103 battery (or B130) 90V HT & 1.5V LT, U2 Battery 1.5V scale lamps (TA2A)
  • Consumption: HT 12.5mA, DL92 5.5mA, (DL 6.4mA), LT 250mA

The TB2A code  are all  of the intermediate Model T with DK91 and DL94 options, It's a factory code and not anywhere on the cabinet or chassis.

The four versions use incompatible tubes but identical cabinets. Later versions may omit the scale lamps.

  1. TA2A DK91 DF91 DAF91 DL92 First Version, Only the early TA2A versions have the scale lamps
  2. TB2A This version using DK91 DF91 DAF91 DL94  various revisions.
  3. TC2A   DK92 DF91 DAF91 DL94. Last 250mA Transportable T (entirely same pin wiring as DK96, DF96, DAF96 and DL96) From Serial No. 544750 all revisions are included.
  4. T S.Q. final production before Sky Prince using using DK96 DF96 DAF96 DL96. Early version of Sky Queen chassis does seem to use same component values as TC2A above S/N T 544750, so may be simply a valve change.

Weight excludes battery. Weight excludes battery. The longer life AD3 pack does also fit the case.

Net weight (2.2 lb = 1 kg) 5.4 kg / 11 lb 14.3 oz (11.894 lb)
Price in first year of sale 11.00 GBP
Source of data -- Schematic
Literature/Schematics (1) R&TVS. Vol I (Pre 1953), page 174. Trader Sheet 1098.

Model page created by Keith Staines. See "Data change" for further contributors.



All listed radios etc. from Ever Ready Co. (GB) Ltd.; London
