Capehart Panamuse 31N4 Sheraton

Capehart Panamuse 31N4 Sheraton ; Farnsworth (ID = 283749) Radio

Capehart Panamuse 31N4 Sheraton ; Farnsworth (ID = 283750) Radio

Capehart Panamuse 31N4 Sheraton ; Farnsworth (ID = 283751) Radio

Capehart Panamuse 31N4 Sheraton ; Farnsworth (ID = 283752) Radio

Capehart Panamuse 31N4 Sheraton ; Farnsworth (ID = 283753) Radio

Capehart Panamuse 31N4 Sheraton ; Farnsworth (ID = 283754) Radio

Capehart Panamuse 31N4 Sheraton ; Farnsworth (ID = 283755) Radio

Capehart Panamuse 31N4 Sheraton ; Farnsworth (ID = 283756) Radio

Capehart Panamuse 31N4 Sheraton ; Farnsworth (ID = 283757) Radio

Capehart Panamuse 31N4 Sheraton ; Farnsworth (ID = 464598) Radio
Capehart Panamuse 31N4 Sheraton ; Farnsworth (ID = 1281950) Radio Capehart Panamuse 31N4 Sheraton ; Farnsworth (ID = 1281957) Radio
Capehart Panamuse 31N4 Sheraton ; Farnsworth (ID = 1281958) Radio Capehart Panamuse 31N4 Sheraton ; Farnsworth (ID = 1281951) Radio
Capehart Panamuse 31N4 Sheraton ; Farnsworth (ID = 1281961) Radio Capehart Panamuse 31N4 Sheraton ; Farnsworth (ID = 1281959) Radio
Capehart Panamuse 31N4 Sheraton ; Farnsworth (ID = 1281953) Radio Capehart Panamuse 31N4 Sheraton ; Farnsworth (ID = 1281966) Radio
Capehart Panamuse 31N4 Sheraton ; Farnsworth (ID = 1281955) Radio Capehart Panamuse 31N4 Sheraton ; Farnsworth (ID = 1281956) Radio
Use red slider bar for more.
Capehart Panamuse 31N4 Sheraton ; Farnsworth (ID = 1281950) Radio
Farnsworth: Capehart Panamuse 31N4 Sheraton [Radio] ID = 1281950 933x1111
Select picture or schematic to display from thumbnails on the right and click for download.
For model Capehart Panamuse 31N4 Sheraton, Farnsworth Television & Radio Corp. - see also Capehart:
By courtesy of guest Janet Masters, Eaton, USA.

Country:  United States of America (USA)
Manufacturer / Brand:  Farnsworth Television & Radio Corp. - see also Capehart
Year: 1946–1948 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: 6AG5 6SB7Y 6SA7 6SG7 6SF7 6H6 6J7 6SL7GT 6V6GT 6V6GT 5Y3GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 185 watts, 60 cycles, 117 = 105 - 125 Volt
Loudspeaker 2 Loudspeakers / Ø 11.375 inch = 28.9 cm
Power out
from Radiomuseum.org Model: Capehart Panamuse 31N4 Sheraton - Farnsworth Television & Radio
Material Wooden case
Shape Console with any shape - in general
Notes

Capehart Panamuse 31N4 Sheraton

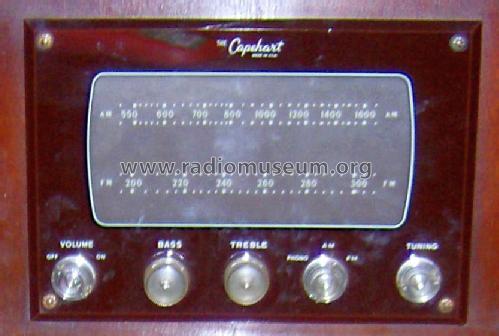

Cabinet: Radio Retailing, February 1948 tells us on page 42: "Panamuse model 31N4 by Capehart: automatic radio-phono with FM, two balanced 12" speakerssingle unit tuner-amp. Changer handles twelve 10" or ten 12" records, Hepplewhite cabinet of hand-rubbed mahogany - serpentine front and english antique brass door pulls and grill $ 465." But we don't know yet the starting price from 1946 or so.

Chassis:

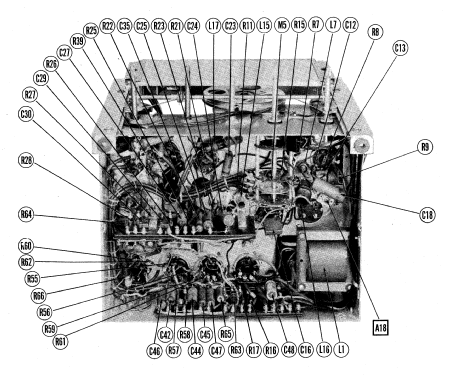

According to SAMS Photofact Folder Date 7-49, 4913-3, set 65, folder 3, the following 13 Capehart models were made by the Capehart division of Farnsworth Television and Radio Corp., Fort Wayne, Indiana and use the same chassis: 19N4, 24N4, 26N4, 31N4 with record changer P-63; 21P4, 24P429P4, 30P431P4 with record changer P-71 (Rider's); 114N4, 116N4, 116P4 (see video there) and 118P4 (see video there) with 41-E turn-over changer. Jensen 11 3/8" PM speaker ST-673 mod. P12-Q and built in 5" ST-589 mod. Q8-P coaxial within the big one - maybe only in "P" models.
The difference between the N4- and P4-series is the phono pre-amplifier tube: a 6SC7 is used in the P4-series and a 6J7 tube is used in the N4-series.
On top of that: the early N4-series differ in the circuit for tube 3 and 4 (AM RF - FM 1st IF and AM converter, only 2 gang var. cap. plus wave trap) instead of 3 in later ones. There is a filter choke. FM dipole antenna with an FM ant. coil and AM loop antenna are built in. See here the "Common information for the Capehart model pages for the 1930s and 1940s".
