500-C

• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1966–1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26709

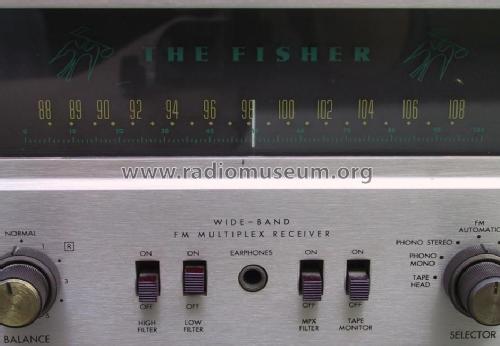

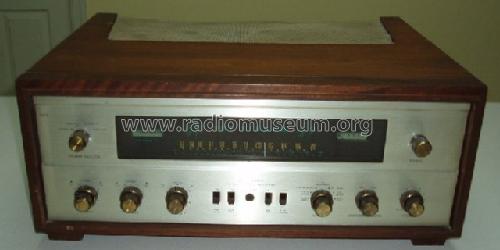

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

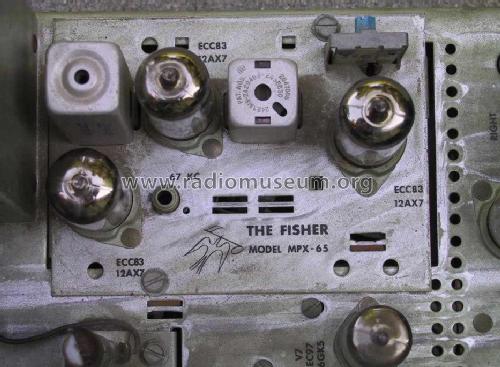

• Valves / Tubes
• EC900 6CW4 6CW4 6HR6 EF94 EF94 EF94 EC97 ECC83 ECC83 ECC83 ECC83 ECC83 ECC83 7591 7591 7591 7591

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 13 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

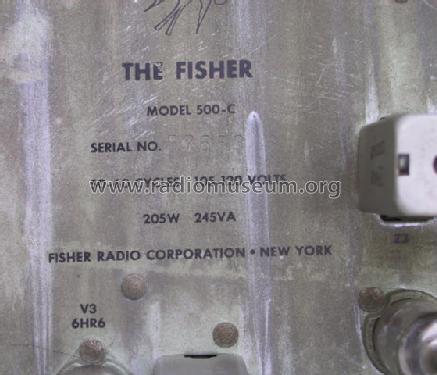

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: 500-C - Fisher Radio; New York NY

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 445 x 146 x 380 mm / 17.5 x 5.7 x 15 inch

• Notes
• HiFi-Stereo-Tuner-Verstärker. Ausgangsleistung 2× 33 W (Sinus); Nußbaum-Gehäuse gegen Mehrpreis (120,- DM).
  Vertrieb über ELAC.

• Net weight (2.2 lb = 1 kg)
• 16.6 kg / 36 lb 9 oz (36.564 lb)

• Price in first year of sale
• 2,190.00 DM

• External source of data
• erb

• Source of data
• Handbuch VDRG 1966/1967

• Literature/Schematics (1)
• -- Schematic
