EFM6

EFM6; Funk- und (ID = 45506) Radio EFM6; Funk- und (ID = 45507) Radio
EFM6; Funk- und (ID = 45508) Radio EFM6; Funk- und (ID = 1673936) Radio
EFM6; Funk- und (ID = 1673937) Radio EFM6; Funk- und (ID = 1673938) Radio
EFM6; Funk- und (ID = 1673939) Radio EFM6; Funk- und (ID = 1673942) Radio
EFM6; Funk- und (ID = 1673944) Radio
Use red slider bar for more.

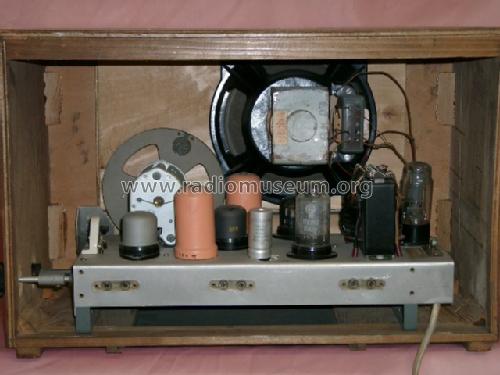

EFM6; Funk- und (ID = 45506) Radio
Funk- und: EFM6 [Radio] ID = 45506 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model EFM6, Funk- und Feinmechanik Neustadt/Glewe, VEB(K) (Ostd.):
DDR_Funkmechanik_Neustadt_Glewe_1952_EFM6 Neustadt Glewe_EFM6

Country:  Germany
Manufacturer / Brand:  Funk- und Feinmechanik Neustadt/Glewe, VEB(K) (Ostd.)
alternative name

VEB(K) Funkmechanik; Neustad
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 EF11 EL11 EZ12
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: EFM6 - Funk- und Feinmechanik
Material Wooden case
Shape Tablemodel, low profile (big size).
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967


All listed radios etc. from Funk- und Feinmechanik Neustadt/Glewe, VEB(K) (Ostd.)
Here you find 36 models, 31 with images and 20 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Funk- und: EFM6
Threads: 1 | Posts: 1
Hits: 1722     Replies: 0
funkmechan: EFM6;
Arpad Roth † 27.3.17
03.Mar.04
  1 Herr Andreas Reuther hat mitgeteilt: 4 Röhren: ECH11, EBF11, EF11, EL11 (im gezeigten Modell ist die EL12n eingebaut, vermutlich gehört die EL11 hinein), EZ12. Edyn Laustprecher, Keramik ZF-Filter von den Keramik Werken Hermsdorf (Hescho)

Funk- und: EFM6
End of forum contributions about this model
