Goldton 66

Goldton 66; Funk- und (ID = 957643) Radio Goldton 66; Funk- und (ID = 957648) Radio

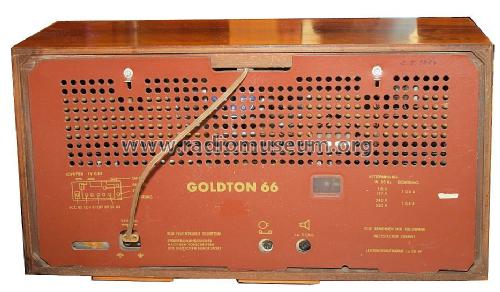

Goldton 66; Funk- und (ID = 957649) Radio
Use red slider bar for more.
Goldton 66; Funk- und (ID = 957643) Radio
Funk- und: Goldton 66 [Radio] ID = 957643 933x554
Select picture or schematic to display from thumbnails on the right and click for download.
For model Goldton 66, Funk- und Feinmechanik Neustadt/Glewe, VEB(K) (Ostd.):
Fotografiert auf einem Radio-Flohmarkt.

Country:  Germany
Manufacturer / Brand:  Funk- und Feinmechanik Neustadt/Glewe, VEB(K) (Ostd.)
alternative name

VEB(K) Funkmechanik; Neustad
Year: 1965 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EBF89 EABC80 EM84 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Goldton 66 - Funk- und Feinmechanik
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 620 x 310 x 225 mm / 24.4 x 12.2 x 8.9 inch
Notes Exportvariante des Weimar 5340C für einen bisher noch unbekannten Exporteur (nicht Bruns).
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Source of data -- = frühere Type mit ähnl. Charakteristik - darum Mod. teilw. früher.

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
