Korvette 8332

Korvette 8332; Funk- und (ID = 1519184) Radio
Korvette 8332; Funk- und (ID = 1256671) Radio Korvette 8332; Funk- und (ID = 1256672) Radio
Use red slider bar for more.
Korvette 8332; Funk- und (ID = 1256671) Radio
Funk- und: Korvette 8332 [Radio] ID = 1256671 933x447
Select picture or schematic to display from thumbnails on the right and click for download.
For model Korvette 8332, Funk- und Feinmechanik Neustadt/Glewe, VEB(K) (Ostd.):
By courtesy of guest Phil Jonsson, Thornhill, Ontario, Canada.

Country:  Germany
Manufacturer / Brand:  Funk- und Feinmechanik Neustadt/Glewe, VEB(K) (Ostd.)
alternative name

VEB(K) Funkmechanik; Neustad
Year: 1967 ? Category: Broadcast Receiver - or past WW2 Tuner

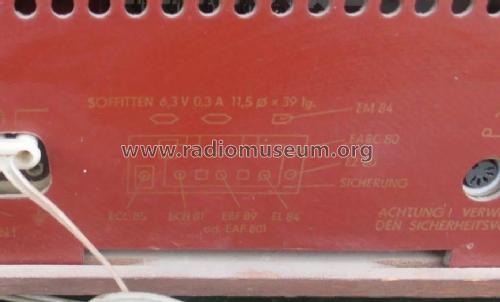

Valves / Tubes 7: ECC85 ECH81 EBF89 or EAF801 EABC80 EM84 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)

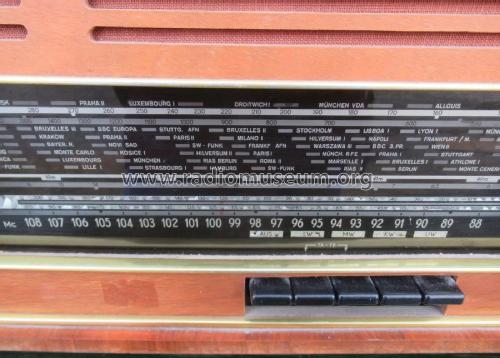

Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.6 W (unknown quality)
from Radiomuseum.org Model: Korvette 8332 - Funk- und Feinmechanik
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 710 x 265 x 145 mm / 28 x 10.4 x 5.7 inch
Notes

Exportausführung des Modells 8311 mit Ferritantenne und UKW bis 108 MHz.

Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Franz Scharner. See "Data change" for further contributors.
