Musica 8/56WUK

Musica 8/56WUK; Funk- und (ID = 353813) Radio Musica 8/56WUK; Funk- und (ID = 353814) Radio
Musica 8/56WUK; Funk- und (ID = 353819) Radio Musica 8/56WUK; Funk- und (ID = 353815) Radio
Use red slider bar for more.

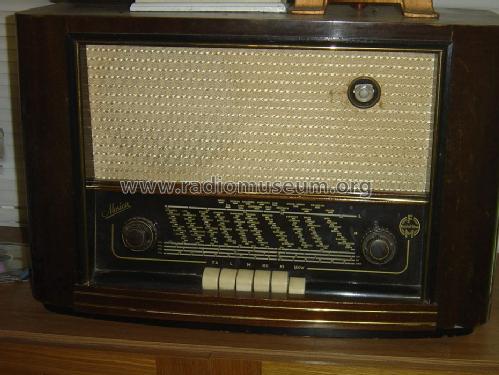

Musica 8/56WUK; Funk- und (ID = 353813) Radio
Funk- und: Musica 8/56WUK [Radio] ID = 353813 932x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musica 8/56WUK, Funk- und Feinmechanik Neustadt/Glewe, VEB(K) (Ostd.)

Country:  Germany
Manufacturer / Brand:  Funk- und Feinmechanik Neustadt/Glewe, VEB(K) (Ostd.)
alternative name

VEB(K) Funkmechanik; Neustad
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EC92 EC92 ECH81 EF85 EM11 EABC80 EL84 EZ80
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Musica 8/56WUK - Funk- und Feinmechanik
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Ch=8/55WUK.
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 3
