RFT-Super 5U61M

• Country
• Germany

• Manufacturer / Brand
• Funkwerk Dresden, VEB, RFT (Ostd. vorm. H. Mende & Co.)

• Year
• 1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 85055

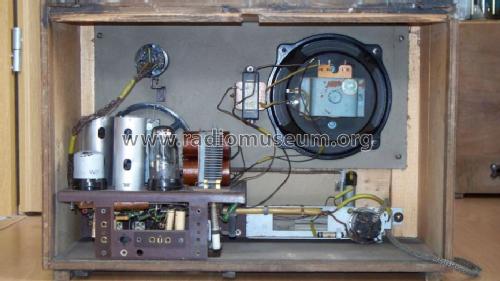

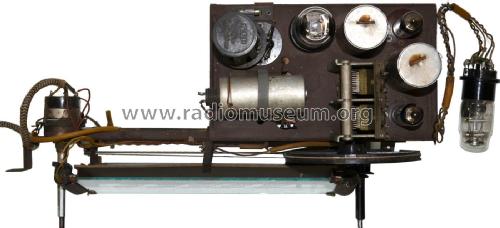

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH81 UBF80 UEL51 UM11 or UY11

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

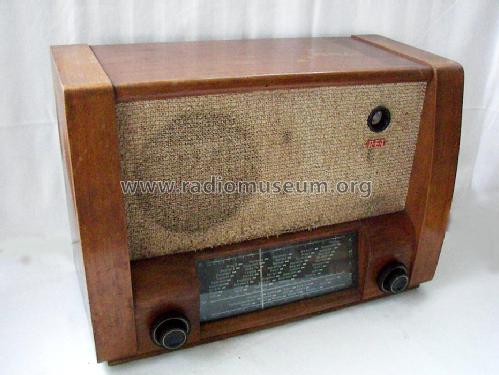

• Model: RFT-Super 5U61M - Funkwerk Dresden, VEB, RFT

• Shape
• Tablemodel, low profile (big size).

• Notes

• Der 5U61M ist bis auf die Röhrenbestückung der 80er Serie baugleich mit dem 5U61 (mit UEL51).
  Anschlussmöglichkeit für das UKW-Vorsatzgerät 1U14.

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967

• Author
• Model page created by Andreas Reuther. See "Data change" for further contributors.
