Amplificatore HI-FI SM4412

Amplificatore HI-FI SM4412; GBC; Milano (ID = 2572127) Ampl/Mixer

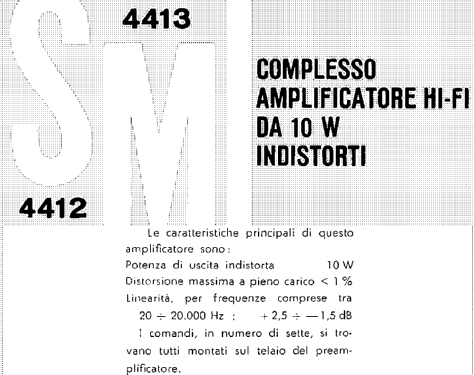

Amplificatore HI-FI SM4412; GBC; Milano (ID = 2572128) Ampl/Mixer

Amplificatore HI-FI SM4412; GBC; Milano (ID = 2572129) Ampl/Mixer
Use red slider bar for more.
Amplificatore HI-FI SM4412; GBC; Milano (ID = 2572127) Ampl/Mixer
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  GBC; Milano
alternative name

Gian Bruto Castelfranchi
Year: 1958 ? Category: Audio Amplifier or -mixer
Valves / Tubes 4: ECC83 EL84 EL84 6AX5
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 10 W (undistorted)
from Radiomuseum.org Model: Amplificatore HI-FI SM4412 - GBC; Milano
Material Metal case
Shape Chassis only or for «building in»
Notes

Usa el preamplificador GBC_SM4413.



Price in first year of sale 16'800.00 Liras
Mentioned in -- Original-techn. papers.

Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
