Clarion ; GBC Electronic (ID = 1436934) R-Player

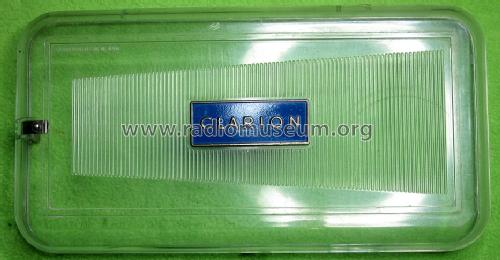

GBC Electronic: Clarion [R-Player] ID = 1436934 933x572
Select picture or schematic to display from thumbnails on the right and click for download.
For model Clarion, GBC Electronic Industries Ltd (G.B.C.); London:
Photos with permission of owner

Country:  Great Britain (UK)
Manufacturer / Brand:  GBC Electronic Industries Ltd (G.B.C.); London
Year: 1959 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 4: OC71 GFT21 OC76 GFT32
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Dry Batteries / 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.02 W (unknown quality)
from Radiomuseum.org Model: Clarion - GBC Electronic Industries Ltd
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 9.5 x 3.625 x 5 inch / 241 x 92 x 127 mm
Notes

Portable tape recorder, single speed (3.75 ips), 2 track, max spool size 3 inches. Later models use a PCB with modified circuit.

The record switch on the side disables the rewind function so recording cannot be accidentally erased. There is a monitor button below the speaker grill to disable the speaker, if required, whilst recording.

The tape heads are on the front of the tape so oxide faces the front, and spools appear to go backwards when compared to more conventional machines.

The original microphone is probably moving coil (approx. 450 ohm)

Made in Western Germany by Trix Vereinigte Spielwarenfabriken, Nuremberg (Nürnberg).
See the most similar model Phono Trix 2.

Net weight (2.2 lb = 1 kg) 5 lb (5 lb 0 oz) / 2.270 kg

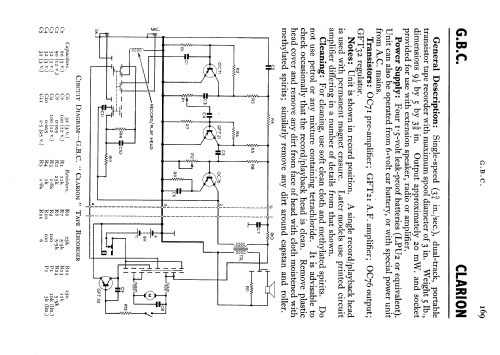

Source of data -- Schematic
Literature/Schematics (1) Radio And Television Servicing books (R&TVS)

Model page created by Keith Staines. See "Data change" for further contributors.
