K2/4P

K2/4P; GBC; Milano (ID = 753945) Radio K2/4P; GBC; Milano (ID = 753946) Radio

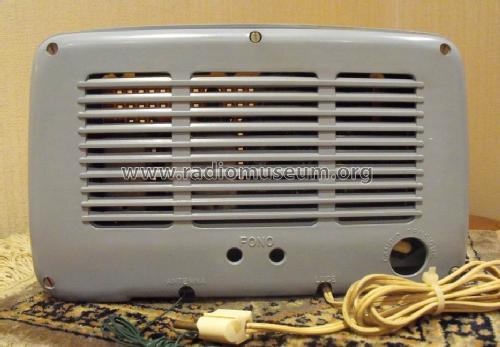

K2/4P; GBC; Milano (ID = 753948) Radio K2/4P; GBC; Milano (ID = 753947) Radio
Use red slider bar for more.
K2/4P; GBC; Milano (ID = 753945) Radio
GBC; Milano: K2/4P [Radio] ID = 753945 933x657
Select picture or schematic to display from thumbnails on the right and click for download.
For model K2/4P, GBC; Milano

Country:  Italy
Manufacturer / Brand:  GBC; Milano
alternative name

Gian Bruto Castelfranchi
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCH42 UF41 UBC41 UL41 DM70 UY41
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out
from Radiomuseum.org Model: K2/4P - GBC; Milano
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 252 x 151 x 132 mm / 9.9 x 5.9 x 5.2 inch
Notes Diverse varianti di colore.
Several color variants.
Source of data - - Data from my own collection

Model page created by Giuseppe Duello. See "Data change" for further contributors.
