Phonetic PT/12

Phonetic PT/12; GBC; Milano (ID = 440414) R-Player

Phonetic PT/12; GBC; Milano (ID = 592055) R-Player

Phonetic PT/12; GBC; Milano (ID = 592057) R-Player

Phonetic PT/12; GBC; Milano (ID = 592058) R-Player

Phonetic PT/12; GBC; Milano (ID = 592060) R-Player

Phonetic PT/12; GBC; Milano (ID = 592061) R-Player

Phonetic PT/12; GBC; Milano (ID = 592062) R-Player

Phonetic PT/12; GBC; Milano (ID = 592063) R-Player

Phonetic PT/12; GBC; Milano (ID = 592064) R-Player

Phonetic PT/12; GBC; Milano (ID = 592065) R-Player
Phonetic PT/12; GBC; Milano (ID = 441223) R-Player Phonetic PT/12; GBC; Milano (ID = 441225) R-Player
Phonetic PT/12; GBC; Milano (ID = 441224) R-Player Phonetic PT/12; GBC; Milano (ID = 440416) R-Player
Phonetic PT/12; GBC; Milano (ID = 913723) R-Player Phonetic PT/12; GBC; Milano (ID = 938909) R-Player
Phonetic PT/12; GBC; Milano (ID = 938910) R-Player Phonetic PT/12; GBC; Milano (ID = 938911) R-Player
Phonetic PT/12; GBC; Milano (ID = 1728999) R-Player Phonetic PT/12; GBC; Milano (ID = 1729000) R-Player
Use red slider bar for more.

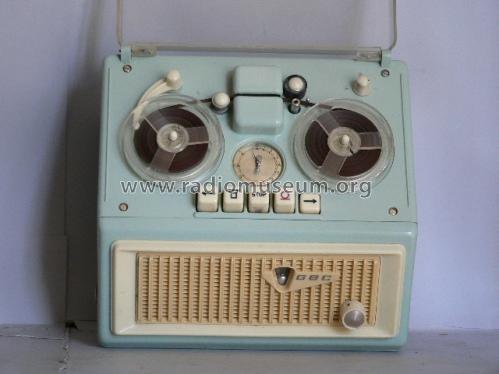

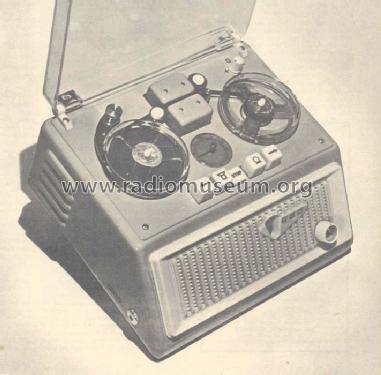

Phonetic PT/12; GBC; Milano (ID = 441223) R-Player
GBC; Milano: Phonetic PT/12 [R-Player] ID = 441223 499x374
Select picture or schematic to display from thumbnails on the right and click for download.
For model Phonetic PT/12, GBC; Milano

Country:  Italy
Manufacturer / Brand:  GBC; Milano
alternative name

Gian Bruto Castelfranchi
Year: 1956 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 3: ECC83 or 12AX7 EL90 or 6AQ5 EM80
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Phonetic PT/12 - GBC; Milano
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 250 x 130 x 220 mm / 9.8 x 5.1 x 8.7 inch
Notes Registratore a nastro. Registrazione su doppia traccia, velocità nastro: 4,75, 9,5 cm/sec, durata massima della registrazione un'ora e 20 minuti.
Net weight (2.2 lb = 1 kg) 4.7 kg / 10 lb 5.6 oz (10.352 lb)
Mentioned in - - Data from my own collection

Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
