Sconosciuto 1

Sconosciuto 1 ; GBC; Milano (ID = 2605286) Radio Sconosciuto 1 ; GBC; Milano (ID = 2605287) Radio
Sconosciuto 1 ; GBC; Milano (ID = 2605288) Radio Sconosciuto 1 ; GBC; Milano (ID = 2605289) Radio
Use red slider bar for more.

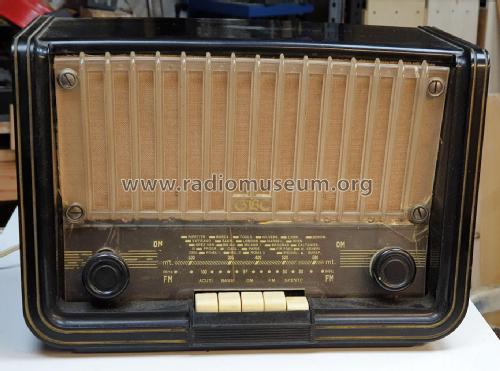

Sconosciuto 1 ; GBC; Milano (ID = 2605286) Radio
GBC; Milano: Sconosciuto 1 [Radio] ID = 2605286 1366x1014
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sconosciuto 1, GBC; Milano

Country:  Italy
Manufacturer / Brand:  GBC; Milano
alternative name

Gian Bruto Castelfranchi
Year: 1958–1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 UL84 UY85
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Sconosciuto 1 - GBC; Milano
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 280 x 190 x 165 mm / 11 x 7.5 x 6.5 inch
Notes

Questo modello è identico al modello Orchestra della Gretzen. Unica differenza la tastiera.

Model page created by Pierpaolo Di Martino. See "Data change" for further contributors.
