Amplificatore G215AN

Amplificatore G215AN; Geloso SA; Milano (ID = 395846) Ampl/Mixer
Amplificatore G215AN; Geloso SA; Milano (ID = 1060138) Ampl/Mixer Amplificatore G215AN; Geloso SA; Milano (ID = 1060139) Ampl/Mixer
Amplificatore G215AN; Geloso SA; Milano (ID = 395847) Ampl/Mixer Amplificatore G215AN; Geloso SA; Milano (ID = 641108) Ampl/Mixer
Use red slider bar for more.

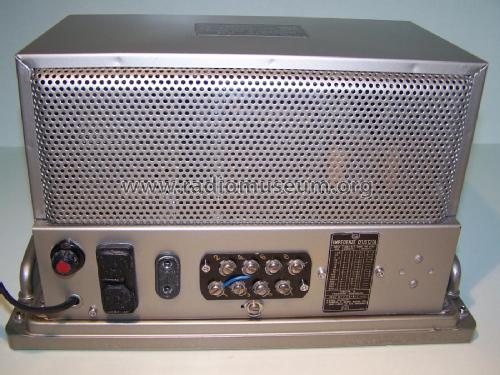

Amplificatore G215AN; Geloso SA; Milano (ID = 1060138) Ampl/Mixer
Geloso SA; Milano: Amplificatore G215AN [Ampl/Mixer] ID = 1060138 870x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplificatore G215AN, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1960 Category: Audio Amplifier or -mixer
Valves / Tubes 5: ECC83 or 12AX7 ECC83 or 12AX7 EL84 or 6BQ5 EL84 or 6BQ5 EZ81
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 100-250 Volt
Loudspeaker - This model requires external speaker(s).
Power out 15 W (unknown quality)
from Radiomuseum.org Model: Amplificatore G215AN - Geloso SA; Milano
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 330 x 190 x 180 mm / 13 x 7.5 x 7.1 inch
Notes Entrata per microfono, fono, sintonizzatore o registratore magnetico. Controllo di tono, 16 impedenze di uscita: da 1,25 a 500 ohm con 16 valori intermedi.
Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Literature/Schematics (1) Bollettino Tecnico Geloso (n. 78-79 primavera-estate1960)

Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
