G106

G106; Geloso SA; Milano (ID = 17793) Radio

G106; Geloso SA; Milano (ID = 838295) Radio
G106; Geloso SA; Milano (ID = 2108694) Radio G106; Geloso SA; Milano (ID = 2108695) Radio

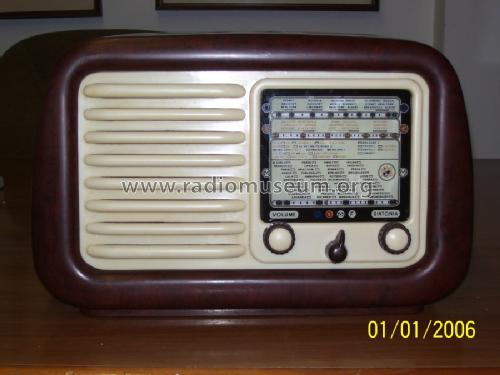

G106; Geloso SA; Milano (ID = 1294364) Radio G106; Geloso SA; Milano (ID = 466104) Radio
G106; Geloso SA; Milano (ID = 694319) Radio G106; Geloso SA; Milano (ID = 1019161) Radio
G106; Geloso SA; Milano (ID = 1298170) Radio G106; Geloso SA; Milano (ID = 1585995) Radio
G106; Geloso SA; Milano (ID = 1585996) Radio G106; Geloso SA; Milano (ID = 1585997) Radio
Use red slider bar for more.
G106; Geloso SA; Milano (ID = 2108694) Radio
Geloso SA; Milano: G106 [Radio] ID = 2108694 1400x869
Select picture or schematic to display from thumbnails on the right and click for download.
For model G106, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EF41 EBC41 EL41 AZ41
Main principle Superheterodyne (common); ZF/IF 467 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220; 280 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: G106 - Geloso SA; Milano
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 390 x 245 x 190 mm / 15.4 x 9.6 x 7.5 inch
Notes Mobile in bachelite maculata.
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
