G1/1020A

G1/1020A; Geloso SA; Milano (ID = 384823) Ampl/Mixer
G1/1020A; Geloso SA; Milano (ID = 366507) Ampl/Mixer G1/1020A; Geloso SA; Milano (ID = 1392008) Ampl/Mixer
G1/1020A; Geloso SA; Milano (ID = 1392005) Ampl/Mixer G1/1020A; Geloso SA; Milano (ID = 1392010) Ampl/Mixer
G1/1020A; Geloso SA; Milano (ID = 1392007) Ampl/Mixer G1/1020A; Geloso SA; Milano (ID = 1392011) Ampl/Mixer

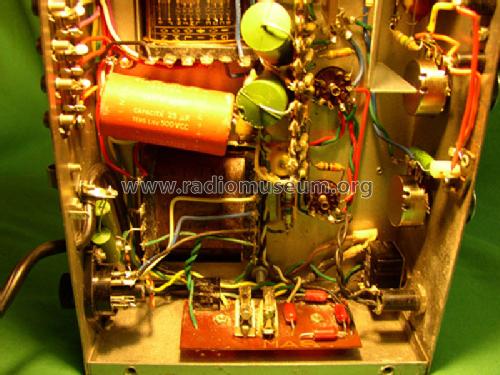

G1/1020A; Geloso SA; Milano (ID = 1392013) Ampl/Mixer G1/1020A; Geloso SA; Milano (ID = 1392021) Ampl/Mixer
G1/1020A; Geloso SA; Milano (ID = 819525) Ampl/Mixer G1/1020A; Geloso SA; Milano (ID = 1726477) Ampl/Mixer
Use red slider bar for more.
G1/1020A; Geloso SA; Milano (ID = 366507) Ampl/Mixer
Geloso SA; Milano: G1/1020A [Ampl/Mixer] ID = 366507 827x499
Select picture or schematic to display from thumbnails on the right and click for download.
For model G1/1020A, Geloso SA; Milano:
Foto mit freundlicher Genehmigung von Herrn Manfred Weibel

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1965 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 4: ECC83 ECC83 EL84 EL84
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 15 W (unknown quality)
from Radiomuseum.org Model: G1/1020A - Geloso SA; Milano
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 300 x 170 x 190 mm / 11.8 x 6.7 x 7.5 inch
Notes Mischverstärker mit je 2 Mikrofon- und Phonoeingängen. Ausgangstrafo bietet zahlreiche Impedanzen von 1,25 - 500 Ohm.
Source of data - - Data from my own collection

Model page created by Eberhard Franzke. See "Data change" for further contributors.
