Canzonetta 515

Canzonetta 515; Graetz, Altena (ID = 12411) Radio

Canzonetta 515; Graetz, Altena (ID = 410319) Radio

Canzonetta 515; Graetz, Altena (ID = 410320) Radio
Canzonetta 515; Graetz, Altena (ID = 1785099) Radio Canzonetta 515; Graetz, Altena (ID = 840723) Radio
Canzonetta 515; Graetz, Altena (ID = 840725) Radio Canzonetta 515; Graetz, Altena (ID = 840726) Radio
Canzonetta 515; Graetz, Altena (ID = 473378) Radio Canzonetta 515; Graetz, Altena (ID = 32549) Radio
Canzonetta 515; Graetz, Altena (ID = 473366) Radio Canzonetta 515; Graetz, Altena (ID = 32550) Radio
Canzonetta 515; Graetz, Altena (ID = 634614) Radio Canzonetta 515; Graetz, Altena (ID = 840724) Radio
Use red slider bar for more.

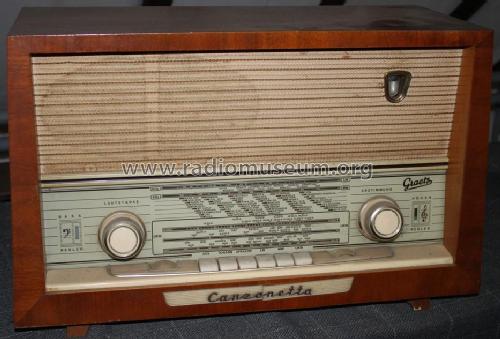

Canzonetta 515; Graetz, Altena (ID = 1785099) Radio
Graetz, Altena: Canzonetta 515 [Radio] ID = 1785099 933x633
Select picture or schematic to display from thumbnails on the right and click for download.
For model Canzonetta 515, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220-240 Volt
Loudspeaker 3 Loudspeakers
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Canzonetta 515 - Graetz, Altena Westfalen
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 540 x 335 x 230 mm / 21.3 x 13.2 x 9.1 inch
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 298.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1957/58
Literature/Schematics (1) -- Original-techn. papers.
