Fantasia 1022

Fantasia 1022; Graetz, Altena (ID = 31515) Radio

Fantasia 1022; Graetz, Altena (ID = 31516) Radio

Fantasia 1022; Graetz, Altena (ID = 31535) Radio

Fantasia 1022; Graetz, Altena (ID = 31534) Radio
Fantasia 1022; Graetz, Altena (ID = 35328) Radio Fantasia 1022; Graetz, Altena (ID = 35332) Radio
Fantasia 1022; Graetz, Altena (ID = 35330) Radio Fantasia 1022; Graetz, Altena (ID = 315162) Radio
Fantasia 1022; Graetz, Altena (ID = 549080) Radio Fantasia 1022; Graetz, Altena (ID = 549081) Radio
Fantasia 1022; Graetz, Altena (ID = 549082) Radio Fantasia 1022; Graetz, Altena (ID = 549084) Radio
Fantasia 1022; Graetz, Altena (ID = 967393) Radio Fantasia 1022; Graetz, Altena (ID = 967400) Radio
Use red slider bar for more.
Fantasia 1022; Graetz, Altena (ID = 35328) Radio

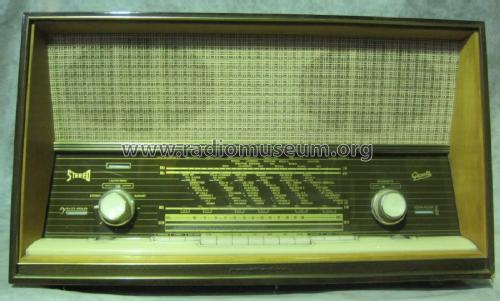

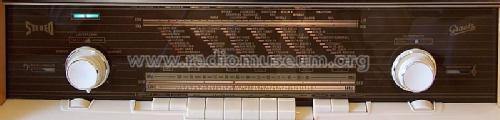

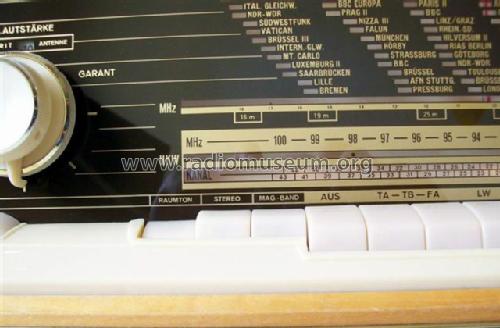

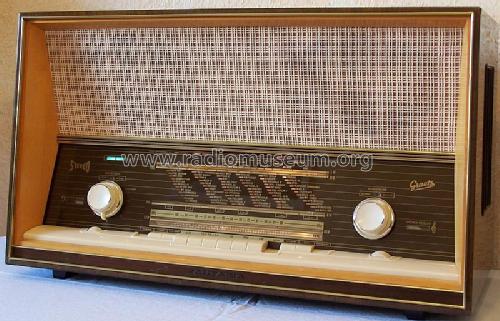

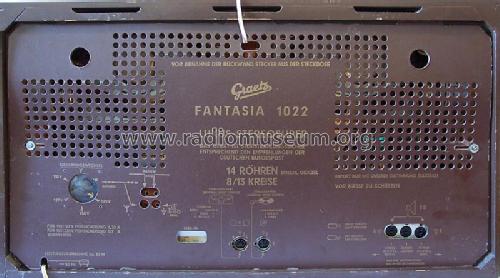

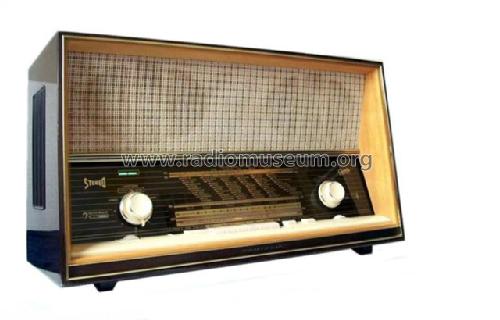

Graetz, Altena: Fantasia 1022 [Radio] ID = 35328 933x635
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fantasia 1022, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 13: ECC85 ECH81 EF89 EF89 EM84 EABC80 ECC83 ECC83 ECC83 EL95 EL95 EL95 EL95
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220 Volt
Loudspeaker 6 Loudspeakers
Power out 15 W (unknown quality)
from Radiomuseum.org Model: Fantasia 1022 - Graetz, Altena Westfalen
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 680 x 390 x 315 mm / 26.8 x 15.4 x 12.4 inch
Notes Bandbreite schaltbar. Ferritantenne drehbar. NF-Stereo;
2 Endstufen je 7,5 W, Parallelbetrieb bei Mono.
Das Handbuch RFP (Rundfunk Fernsehen Phono) und ein Prospekt von 1961/62 nennen
abweichend die Abmessungen von 676 x 390 x 314 mm und einen Preis von 518,-DM.
Der Prospekt nennt (wohl unter Einbeziehung des ZF-Sperrkreises) 9 AM-Kreise; die Kataloge, Schema und Rückwand zeigen dagegen 8 AM-Kreise.
Net weight (2.2 lb = 1 kg) 17 kg / 37 lb 7.1 oz (37.445 lb)
Price in first year of sale 498.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1961/62
Mentioned in Handbuch RFP 1961/62


All listed radios etc. from Graetz, Altena (Westfalen)
Here you find 754 models, 668 with images and 581 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
