Melodia 1017

Melodia 1017; Graetz, Altena (ID = 33567) Radio

Melodia 1017; Graetz, Altena (ID = 33569) Radio

Melodia 1017; Graetz, Altena (ID = 2053309) Radio

Melodia 1017; Graetz, Altena (ID = 33570) Radio

Melodia 1017; Graetz, Altena (ID = 33571) Radio

Melodia 1017; Graetz, Altena (ID = 33573) Radio
Melodia 1017; Graetz, Altena (ID = 119294) Radio Melodia 1017; Graetz, Altena (ID = 94125) Radio
Melodia 1017; Graetz, Altena (ID = 119295) Radio Melodia 1017; Graetz, Altena (ID = 415029) Radio
Melodia 1017; Graetz, Altena (ID = 430659) Radio Melodia 1017; Graetz, Altena (ID = 492629) Radio
Melodia 1017; Graetz, Altena (ID = 492631) Radio Melodia 1017; Graetz, Altena (ID = 492632) Radio
Melodia 1017; Graetz, Altena (ID = 492633) Radio Melodia 1017; Graetz, Altena (ID = 764910) Radio
Use red slider bar for more.

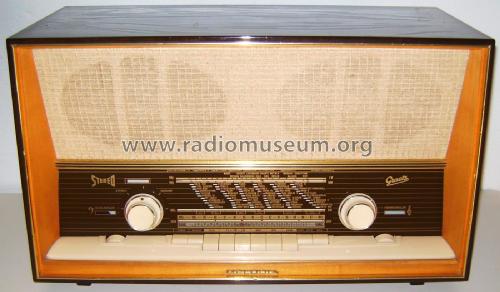

Melodia 1017; Graetz, Altena (ID = 119294) Radio
Graetz, Altena: Melodia 1017 [Radio] ID = 119294 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Melodia 1017, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EF89 EABC80 EM84 ECC83 EL84 EL84
Main principle Superheterodyne (common); ZF/IF 460/6750 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Melodia 1017 - Graetz, Altena Westfalen
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 610 x 357 x 272 mm / 24 x 14.1 x 10.7 inch
Notes Ferritantenne schaltbar. NF-Stereo; 2 Endstufen je 4 W, Parallelbetrieb bei Mono.
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 398.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1961/62
