Melodia R

Melodia R ; Graetz, Altena (ID = 1898587) Radio Melodia R ; Graetz, Altena (ID = 1898589) Radio

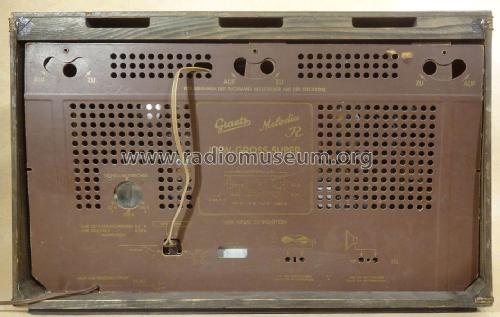

Melodia R ; Graetz, Altena (ID = 1898590) Radio Melodia R ; Graetz, Altena (ID = 1898591) Radio
Use red slider bar for more.
Melodia R ; Graetz, Altena (ID = 1898587) Radio
Graetz, Altena: Melodia R [Radio] ID = 1898587 1390x862
Select picture or schematic to display from thumbnails on the right and click for download.
For model Melodia R, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF85 EABC80 EM34 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 127; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Melodia R - Graetz, Altena Westfalen
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 624 x 392 x 280 mm / 24.6 x 15.4 x 11 inch
Notes

UKW-Groß-Super Melodia R
hat 3 Lautsprecher:  Breitband-LS 260x180mm, 2x Hochton 130mm. Ein HT als Rundstrahler im Dach eingebaut. Drehbare Ferritantenne, Stromsparschaltung.

Die Gestaltung und der Aufbau des Gerätes entsprechen dem Modell Melodia 4R, Unterschiede sind derzeit nicht bekannt.

Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 378.00 DM
Collectors' prices

Model page created by Heinz LUCAS. See "Data change" for further contributors.
