• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25332

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84

• Number of Transistors

• Semiconductors
• B250C75

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 127; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

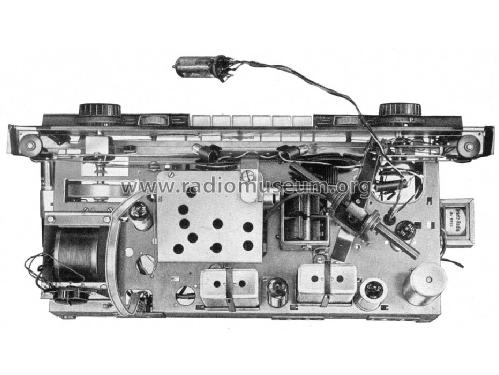

• Model: Musica 3284 - Graetz, Altena Westfalen

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 576 x 362 x 265 mm / 22.7 x 14.3 x 10.4 inch

• External source of data
• Wiesmüller

• Source of data
• Lange, Schaltungen der Funkindustrie
