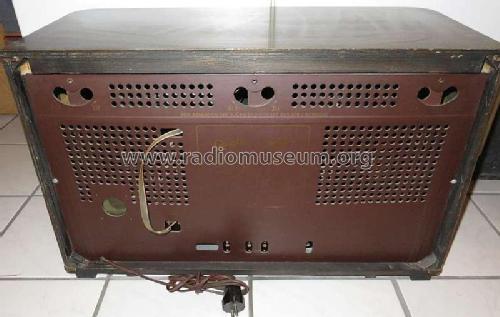

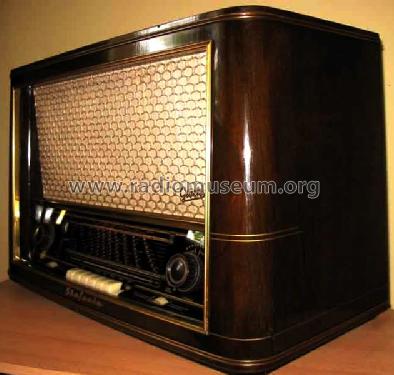

Sinfonia 3262

• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1757

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF41 EF41 EM34 EABC80 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Sinfonia 3262 - Graetz, Altena Westfalen

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 665 x 410 x 306 mm / 26.2 x 16.1 x 12 inch

• Notes
•   Bandbreite schaltbar. Ferritantenne drehbar.

• Net weight (2.2 lb = 1 kg)
• 15.9 kg / 35 lb 0.4 oz (35.022 lb)

• Price in first year of sale
• 418.00 DM

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 1, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
