Super 48WS

Super 48WS; Graetz Radio, Berlin (ID = 100718) Radio

Super 48WS; Graetz Radio, Berlin (ID = 100712) Radio

Super 48WS; Graetz Radio, Berlin (ID = 100713) Radio

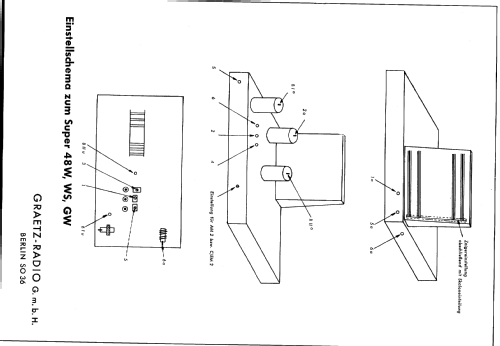

Super 48WS; Graetz Radio, Berlin (ID = 100714) Radio

Super 48WS; Graetz Radio, Berlin (ID = 100715) Radio

Super 48WS; Graetz Radio, Berlin (ID = 100716) Radio

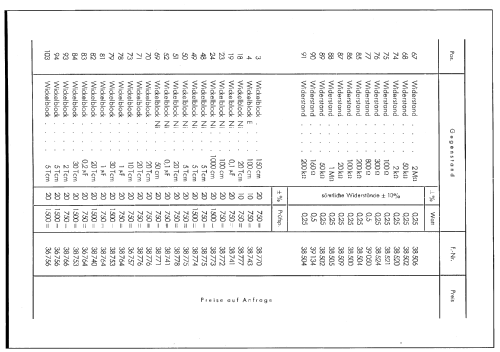

Super 48WS; Graetz Radio, Berlin (ID = 100717) Radio

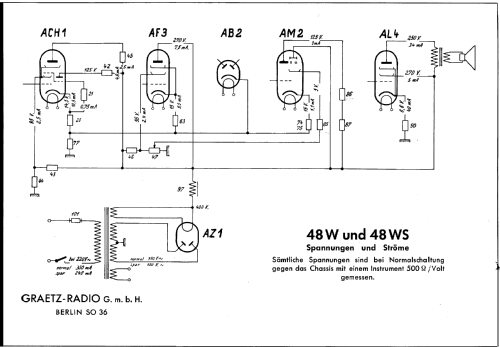

Super 48WS; Graetz Radio, Berlin (ID = 100719) Radio

Super 48WS; Graetz Radio, Berlin (ID = 100720) Radio

Super 48WS; Graetz Radio, Berlin (ID = 22209) Radio
Super 48WS; Graetz Radio, Berlin (ID = 138584) Radio Super 48WS; Graetz Radio, Berlin (ID = 138586) Radio
Super 48WS; Graetz Radio, Berlin (ID = 138585) Radio Super 48WS; Graetz Radio, Berlin (ID = 707815) Radio

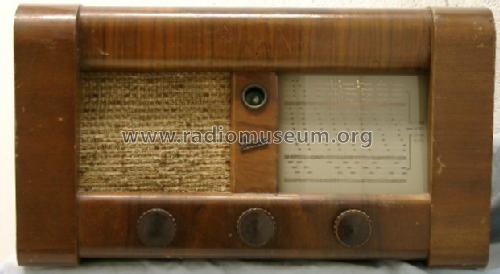

Super 48WS; Graetz Radio, Berlin (ID = 35494) Radio Super 48WS; Graetz Radio, Berlin (ID = 35495) Radio
Super 48WS; Graetz Radio, Berlin (ID = 100505) Radio Super 48WS; Graetz Radio, Berlin (ID = 100506) Radio
Super 48WS; Graetz Radio, Berlin (ID = 156440) Radio Super 48WS; Graetz Radio, Berlin (ID = 707532) Radio
Use red slider bar for more.
Super 48WS; Graetz Radio, Berlin (ID = 138584) Radio

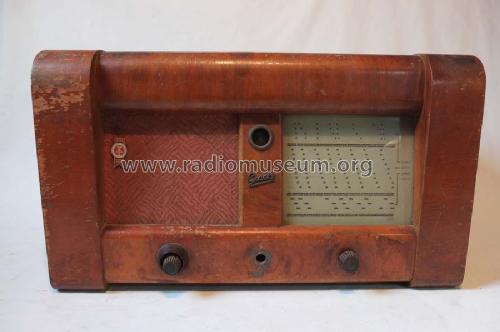

Graetz Radio, Berlin: Super 48WS [Radio] ID = 138584 803x585
Select picture or schematic to display from thumbnails on the right and click for download.

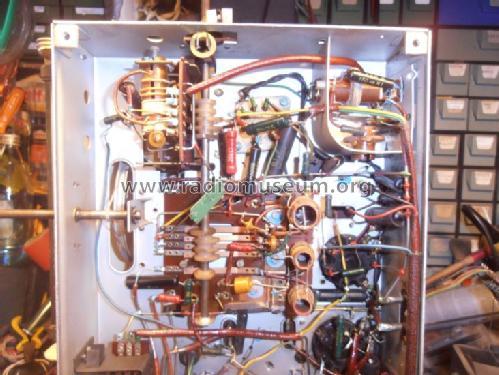

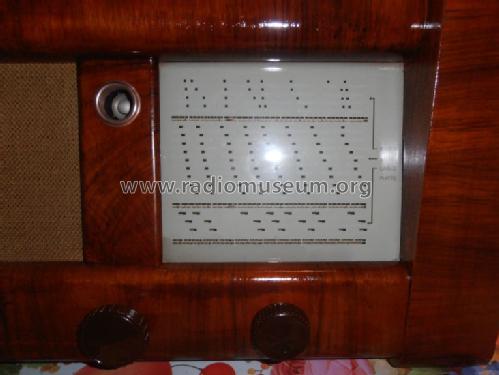

For model Super 48WS, Graetz Radio, Berlin Treptow SO36, Vorkrieg

Country:  Germany
Manufacturer / Brand:  Graetz Radio, Berlin Treptow SO36, Vorkrieg
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ACH1 AF3 AB2 AL4 AM2 AZ1

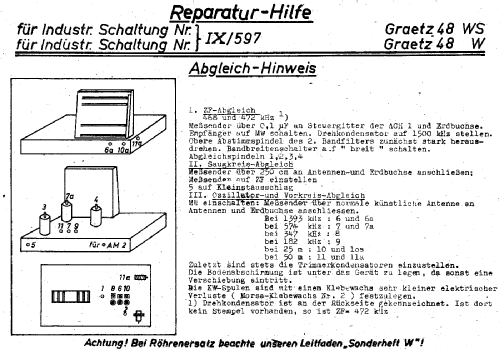

Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Super 48WS - Graetz Radio, Berlin Treptow
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 605 x 340 x 290 mm / 23.8 x 13.4 x 11.4 inch
Notes variable Bandbreite; Stromsparschaltung.
Net weight (2.2 lb = 1 kg) 15.5 kg / 34 lb 2.3 oz (34.141 lb)
Price in first year of sale 244.00 RM
Collectors' prices
Source of data Handbuch WDRG 1938 / Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
