• Country
• France

• Manufacturer / Brand
• Grandin, Cristal-Grandin (SFRT); Paris, Montreuil

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 215962

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH81 EF89 EABC80 EL84 EM85 6V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Alaska 672BK Plan 019-201 - Grandin, Cristal-Grandin SFRT;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 340 x 240 x 170 mm / 13.4 x 9.4 x 6.7 inch

• Notes

• Clavier à 4 touches. Cadre à air orientable.

  Coffret bakélite.

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Price in first year of sale
• 22,880.00 FRF

• Mentioned in

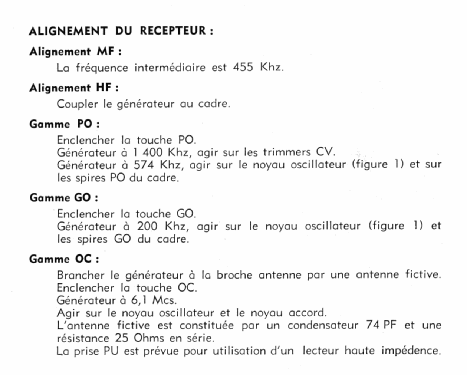

• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by Franz-Josef Haffner. See "Data change" for further contributors.
