Dublette ID=70916
Grandin, Cristal-Grandin (SFRT); Paris, Montreuil
- Country
- France
- Manufacturer / Brand
- Grandin, Cristal-Grandin (SFRT); Paris, Montreuil
- Year
- 9999
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 111449

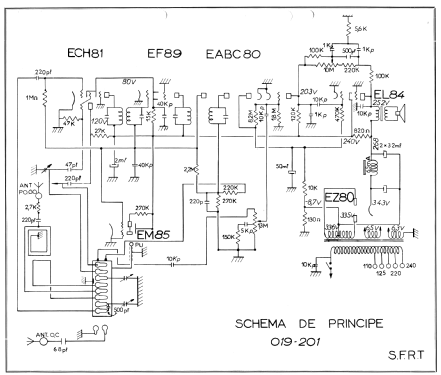

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Dublette ID=70916 - Grandin, Cristal-Grandin SFRT;
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 465 x 315 x 334 mm / 18.3 x 12.4 x 13.1 inch
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
