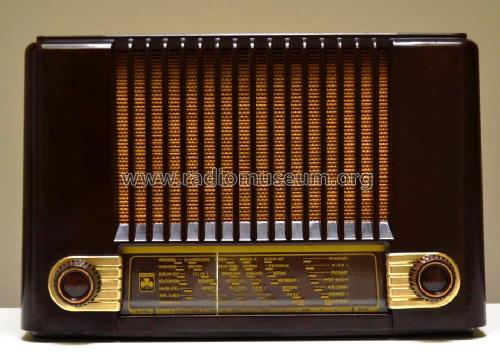

Grundig Radio-: 1001MW [Radio] ID = 250110 754x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1001MW, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1952 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH42 UF41 UBC41 UL41
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details

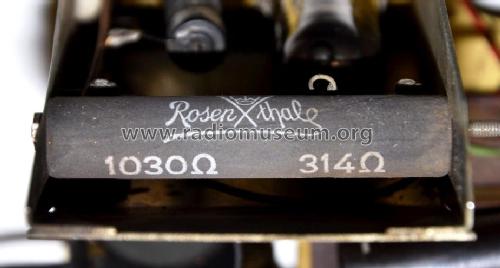

Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 1001MW - Grundig Radio-Vertrieb, RVF,
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 302 x 187 x 145 mm / 11.9 x 7.4 x 5.7 inch
Notes ähnlich 1001GW, allerdings nur Mittelwelle, keine Skalenlampe und abweichende Röhrenbestückung.
Net weight (2.2 lb = 1 kg) 3.160 kg / 6 lb 15.4 oz (6.96 lb)
Collectors' prices
Circuit diagram reference Lange + Schenk

Model page created by Franz-Josef Haffner. See "Data change" for further contributors.
