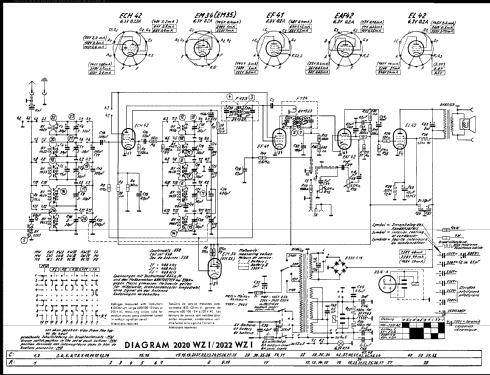

Grundig Radio-: 2022-WZI [Radio] ID = 626064 816x653
Select picture or schematic to display from thumbnails on the right and click for download.
For model 2022-WZI, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Manual Grundig

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1953 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EF41 EAF42 EL42 EM34
Semiconductors (the count is only for transistors) 33/6A Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 117; 125: 220; 240/ 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 2022-WZI - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 545 x 340 x 242 mm / 21.5 x 13.4 x 9.5 inch
Notes Exportmodell. Vibrator 33/6-A NSF for use with 6 volts. batt.
Net weight (2.2 lb = 1 kg) 9.6 kg / 21 lb 2.3 oz (21.145 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Antonio Barros-Regada. See "Data change" for further contributors.
