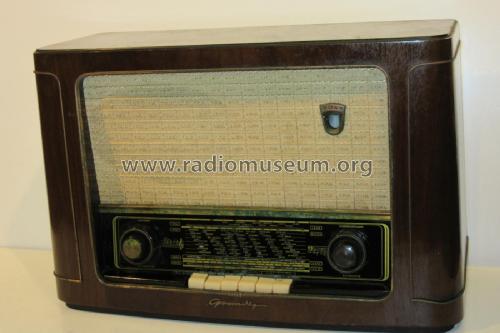

2041W; Grundig Radio- (ID = 2059798) Radio
Grundig Radio-: 2041W [Radio] ID = 2059798 1400x935
Select picture or schematic to display from thumbnails on the right and click for download.
For model 2041W, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1953 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: EC92 ECH81 EF93 EABC80 EM85 EL41
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 2041W - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 573 x 369 x 241 mm / 22.6 x 14.5 x 9.5 inch
Net weight (2.2 lb = 1 kg) 9.6 kg / 21 lb 2.3 oz (21.145 lb)
Price in first year of sale 249.00 DM
Collectors' prices
Mentioned in Funk-Technik Heft 3/1954, S. 80

Model page created by Lars Brötje. See "Data change" for further contributors.
