2041WH ECC85

2041WH; Grundig Radio- (ID = 206322) Radio

2041WH; Grundig Radio- (ID = 369498) Radio
2041WH; Grundig Radio- (ID = 1011448) Radio
Use red slider bar for more.

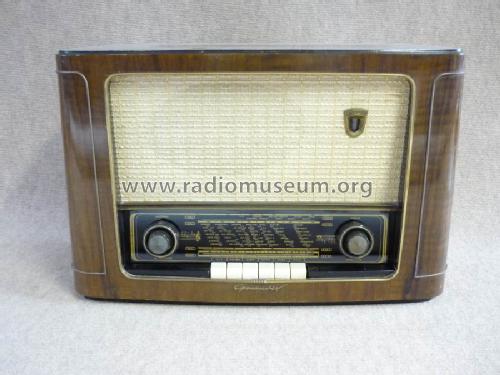

2041WH; Grundig Radio- (ID = 1011448) Radio
Grundig Radio-: 2041WH [Radio] ID = 1011448 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model 2041WH ECC85, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM85 EL41
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 2041WH [ECC85] - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 573 x 369 x 241 mm / 22.6 x 14.5 x 9.5 inch
Notes
Price in first year of sale 270.00 DM
Source of data Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 1, Ernst Erb


All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 6083 models, 5304 with images and 4097 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Grundig Radio-: 2041WH
Threads: 1 | Posts: 1
Hits: 1723     Replies: 0
grundig: 2041WH;
Peter Breu
05.Jan.04
  1 Dieses Gerät gibt es auch im Bakelitgehäuse und heißt dann 2041PW!

Grundig Radio-: 2041WH
