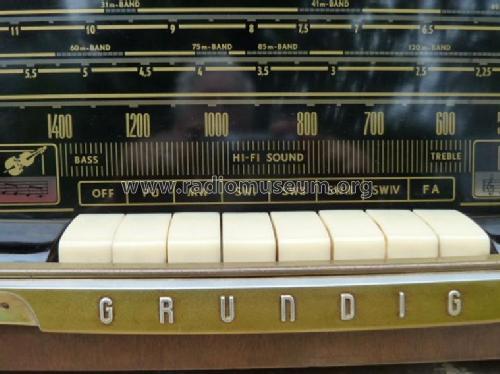

Grundig Radio-: 3090 WFE/3D [Radio] ID = 2031822 705x409
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3090 WFE/3D, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Quelle: ebay-kleinanzeigen.de, #525328223

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EF89 EBC41 EL84 EM34 or EM35
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s); Export model
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 160; 220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: 3090 WFE/3D - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 678 x 357 x 330 mm / 26.7 x 14.1 x 13 inch
Notes

Grundig 3090WFE is an export model. The back cover states 3090WFE whereas the schematic shows the designation 3090WFE/3D. It's the same model.

Four short wave ranges:
SW 1 2...6 MHz,
SW 2 5.9...11.5 MHz,
SW 3 11.3...17.5 MHz,
SW 4 17...26.5 MHz.
Ferrite rod antenna for BC mounted at back side.
Two elliptic loudspeakers, mounted tilted underneath of the top side.

Connection for Grundig Baton - Télé-Régleur - Fern-Dirigent

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Antonio Barros-Regada. See "Data change" for further contributors.
