3095WF/3D

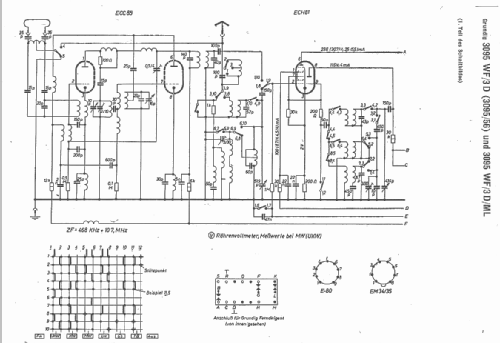

3095WF/3D; Grundig Radio- (ID = 12489) Radio

3095WF/3D; Grundig Radio- (ID = 12490) Radio

3095WF/3D; Grundig Radio- (ID = 52281) Radio

3095WF/3D; Grundig Radio- (ID = 52279) Radio

3095WF/3D; Grundig Radio- (ID = 52280) Radio

3095WF/3D; Grundig Radio- (ID = 1426219) Radio
3095WF/3D; Grundig Radio- (ID = 1561137) Radio
Use red slider bar for more.
3095WF/3D; Grundig Radio- (ID = 1561137) Radio
Grundig Radio-: 3095WF/3D [Radio] ID = 1561137 791x556
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3095WF/3D, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Original Bedienungsanleitung

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM34 or EM35 EL84
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Tuned circuits 8 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 110; 125; 160, 220 Volt
Loudspeaker 4 Loudspeakers
Power out 5.5 W (unknown quality)
from Radiomuseum.org Model: 3095WF/3D - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 704 x 350 x 310 mm / 27.7 x 13.8 x 12.2 inch
Notes offensichtlich identisch mit 3095/56.
Price in first year of sale 418.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1955/56
