3295Ph-Stereo Nussbaum

3295Ph-Stereo; Grundig Radio- (ID = 58926) Radio

3295Ph-Stereo; Grundig Radio- (ID = 58927) Radio
3295Ph-Stereo; Grundig Radio- (ID = 968883) Radio 3295Ph-Stereo; Grundig Radio- (ID = 968878) Radio
3295Ph-Stereo; Grundig Radio- (ID = 968879) Radio 3295Ph-Stereo; Grundig Radio- (ID = 968880) Radio
3295Ph-Stereo; Grundig Radio- (ID = 968881) Radio 3295Ph-Stereo; Grundig Radio- (ID = 1785766) Radio
3295Ph-Stereo; Grundig Radio- (ID = 1807150) Radio 3295Ph-Stereo; Grundig Radio- (ID = 2011067) Radio
Use red slider bar for more.
3295Ph-Stereo; Grundig Radio- (ID = 968883) Radio
Grundig Radio-: 3295Ph-Stereo [Radio] ID = 968883 933x535
Select picture or schematic to display from thumbnails on the right and click for download.

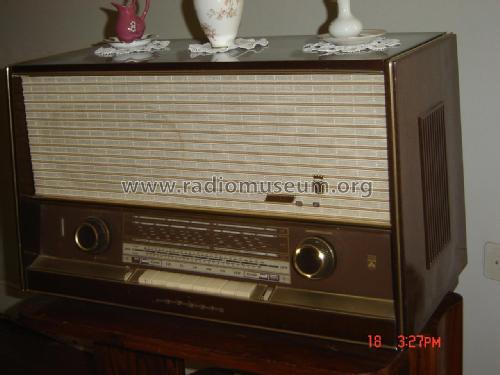

For model 3295Ph-Stereo Nussbaum, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM84 ECC83 ELL80
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 115; 220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: 3295Ph-Stereo [Nussbaum] - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 610 x 365 x 295 mm / 24 x 14.4 x 11.6 inch
Notes Stereo NF-Verstärker mit 5-W-Gegentakt-Endstufe in Zweiwegtechnik. Phono-Chassis = Perpetuum-Ebner PE4240.
Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Price in first year of sale 505.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1961/62
