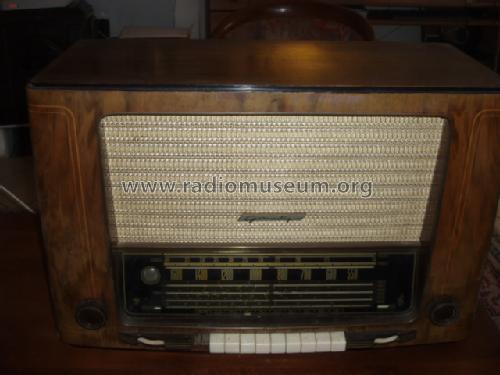

4020-W; Grundig Radio- (ID = 1676896) Radio
Grundig Radio-: 4020-W [Radio] ID = 1676896 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4020-W, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF43 ECH42 EAF42 EAF42 EM34 EL12 AZ12
Main principle Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 160; 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 4020-W - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 660 x 414 x 295 mm / 26 x 16.3 x 11.6 inch
Notes 6 x SW.
Mentioned in - - Manufacturers Literature (Grundig Hausmitteilungen "Das müssen Sie wissen" März 1953 (Nr. 7/8))
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Antonio Barros-Regada. See "Data change" for further contributors.
