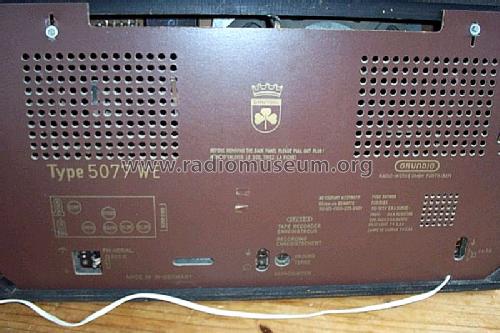

Grundig Radio-: 5077WE [Radio] ID = 1200304 933x708
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5077WE, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EBF89 EAA91 EM34 or EM35 ECC83 EL95 EL95
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 9 AM circuit(s)     15 FM circuit(s)
Wave bands Broadcast, more than 2 SW bands plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 160; 220; 240 Volt
Loudspeaker 4 Loudspeakers
Power out 7 W (unknown quality)
from Radiomuseum.org Model: 5077WE - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 665 x 400 x 275 mm / 26.2 x 15.7 x 10.8 inch
Notes Grundig 5077WE is an export model.
See also the domestic model
Konzertgerät 5077.
Short Wave: 4 bands. Rectifier: B250 C100.
Dial lamps: 4x 6V 0,1A; 2x 7V 0,3A.

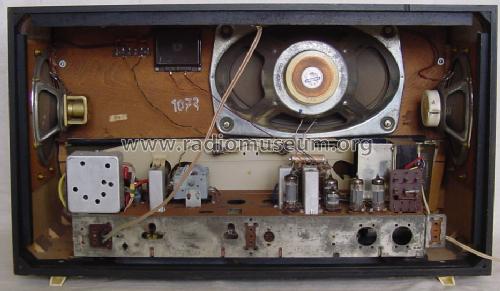

Three elliptical permanent magnet dynamic speakers: 1 x 10"x5.5", 2 x 5.5"x4". One electrostatic tweeter.

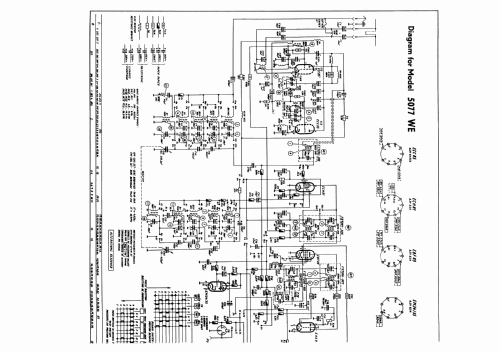

Source of data -- Schematic

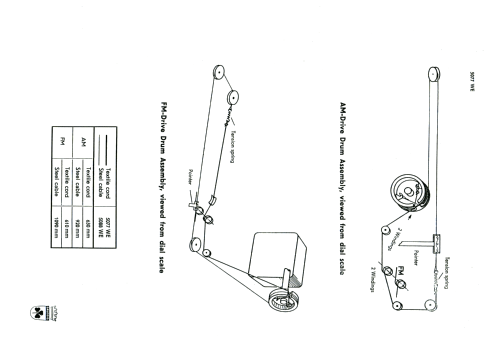

Literature/Schematics (1) -- Original-techn. papers.
