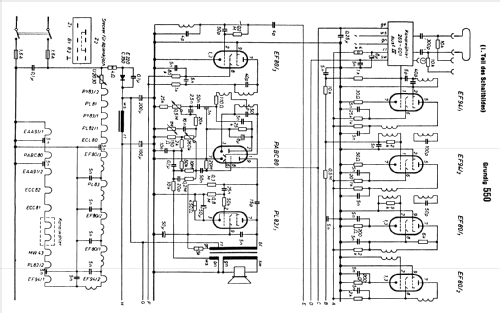

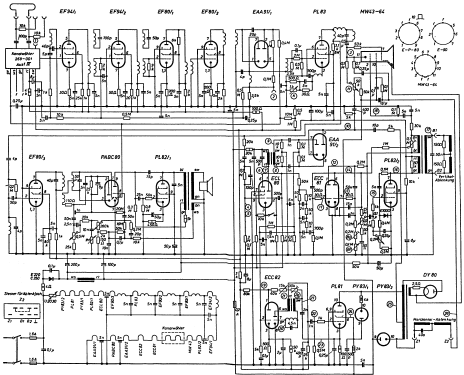

Grundig Radio-: 550 [Television] ID = 105152 466x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 550, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1954/1955 Category: Television Receiver (TV) or Monitor
Valves / Tubes 21: PCC84 PCF82 EF94 EF94 EF80 EF80 EAA91 PL83 EF80 PABC80 PL82 ECL80 ECC81 PL82 EAA91 ECC82 PL81 PY83 PY83 DY80 MW43-64
Main principle Superheterodyne (common); ZF/IF 27000 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 550 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 545 x 905 x 510 mm / 21.5 x 35.6 x 20.1 inch
Notes 11 VHF-Kanäle + 2 Reserve.
Net weight (2.2 lb = 1 kg) 40 kg / 88 lb 1.7 oz (88.106 lb)

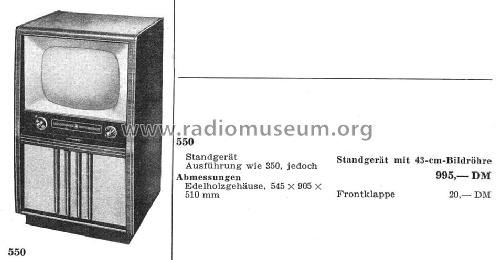

Price in first year of sale 995.00 DM
External source of data Erb
Source of data Rundfunk- und Fernseh-Katalog 1954/55


All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 6070 models, 5287 with images and 4086 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Grundig Radio-: 550
Threads: 1 | Posts: 1
Hits: 1765     Replies: 0
grundig: 550; Zeilenendstufe
Jörg Kirchhof
27.Oct.05

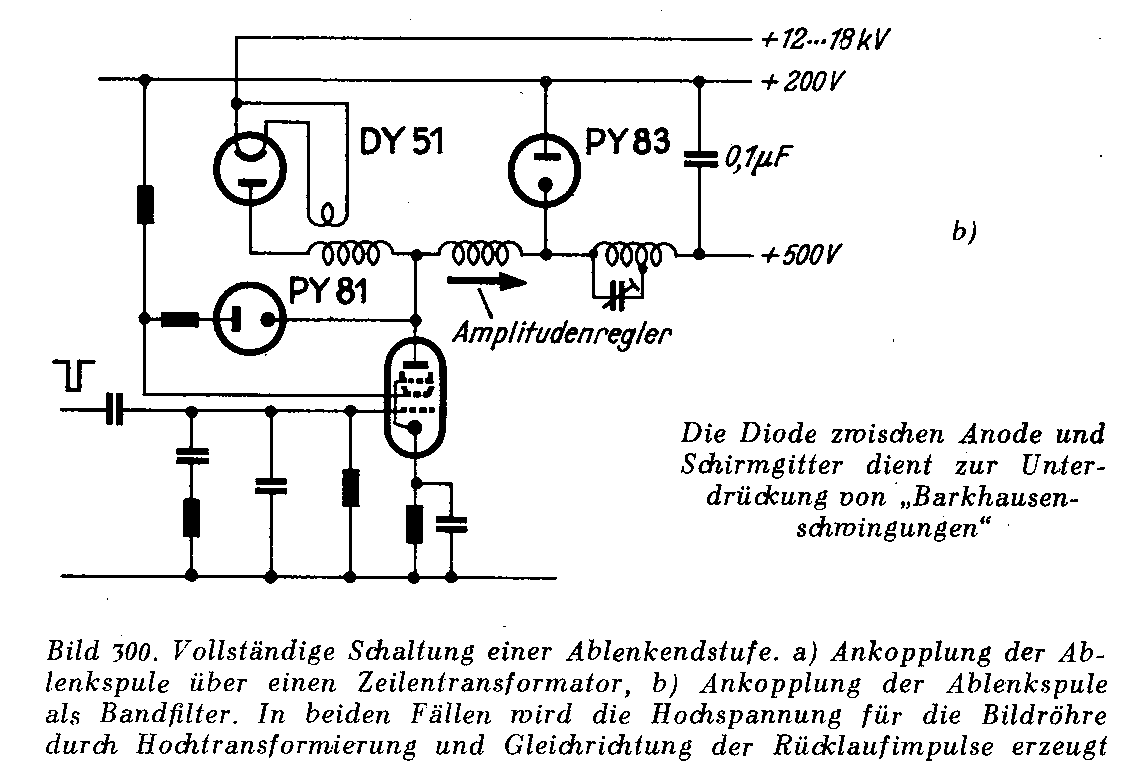

  1 Das Gerät scheint eine Bandfilter-gekoppelte Zeilenendstufe zu besitzen, wie sie in Marcus, Kleine Fernseh-Empfangspraxis, 1960, s. 378 - 379 beschrieben wird. Siehe Bilder
