7050WE

7050WE; Grundig Radio- (ID = 196228) Radio

7050WE; Grundig Radio- (ID = 603684) Radio
7050WE; Grundig Radio- (ID = 825793) Radio 7050WE; Grundig Radio- (ID = 603688) Radio
Use red slider bar for more.
7050WE; Grundig Radio- (ID = 825793) Radio

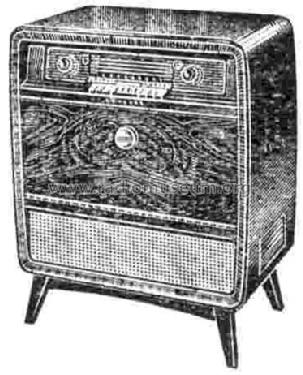

Grundig Radio-: 7050WE [Radio] ID = 825793 374x462
Select picture or schematic to display from thumbnails on the right and click for download.
For model 7050WE, Grundig (Radio-Vertrieb, RVF, Radiowerke):
From manual

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EBF89 ECC83 EL84 EM34
Main principle Superheterodyne (common); ZF/IF 468 kHz; Export model
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 160; 220; 240 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: 7050WE - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Notes Exportgerät mit 4x Kurzwelle.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Josef Pilz. See "Data change" for further contributors.
