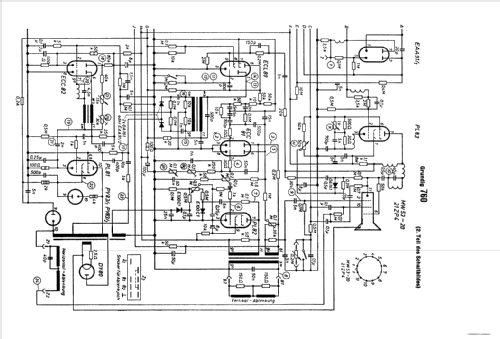

760; Grundig Radio- (ID = 257826) Television
760; Grundig Radio- (ID = 1172538) Television 760; Grundig Radio- (ID = 1172539) Television
760; Grundig Radio- (ID = 1172540) Television 760; Grundig Radio- (ID = 1172541) Television
760; Grundig Radio- (ID = 1172545) Television 760; Grundig Radio- (ID = 1172548) Television
760; Grundig Radio- (ID = 1172552) Television 760; Grundig Radio- (ID = 1172553) Television
Use red slider bar for more.
760; Grundig Radio- (ID = 1172538) Television
Grundig Radio-: 760 [Television] ID = 1172538 581x676
Select picture or schematic to display from thumbnails on the right and click for download.
For model 760, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Ebay auction by user drinkenergy 220953127445

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1954 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 21: PCC84 PCF80 EF94 EABC80 EL84 EAA91 PL83 ECL80 ECC81 PL82 ECC82 PL81 PY83 PY83 DY80 MW53-20
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: 760 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Notes Röhren teilweise mehrfach vorhande. Wellenbereiche Band I & III.
Literature/Schematics (1) Lange, Schaltungen der Funkindustrie

Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
